Place of Origin: | Ningbo China |
Brand Name: | Suntech |
Certification: | ISO9001 |
Model Number: | QH |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Wooden Case |
Delivery Time: | In Stock |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 900 sets per month |
Name: | Hoisting Block | Sheave Number: | 1 |
---|---|---|---|
Model: | QH8-1K | Using: | Lifting |
Load Rated: | 1T-20T | Apply: | Constructure Works |
High Light: | single sheave steel pulley block,steel pulley block single sheave,1T steel pulley block |

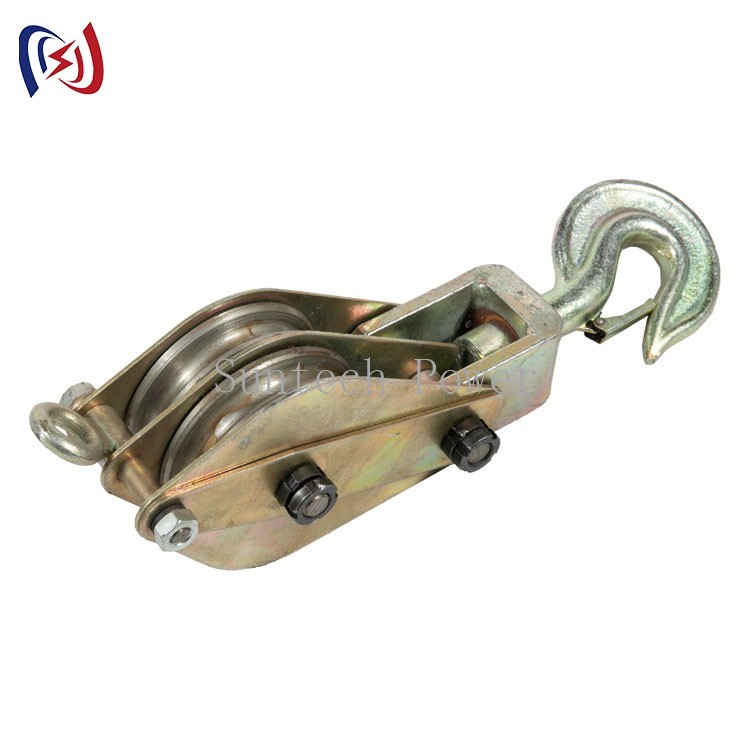

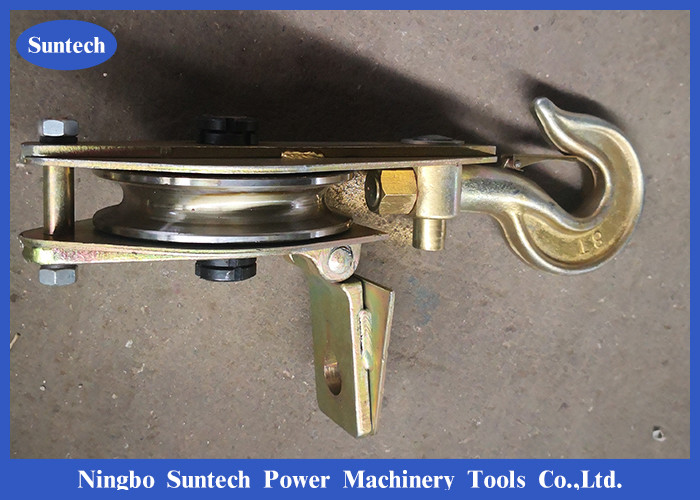

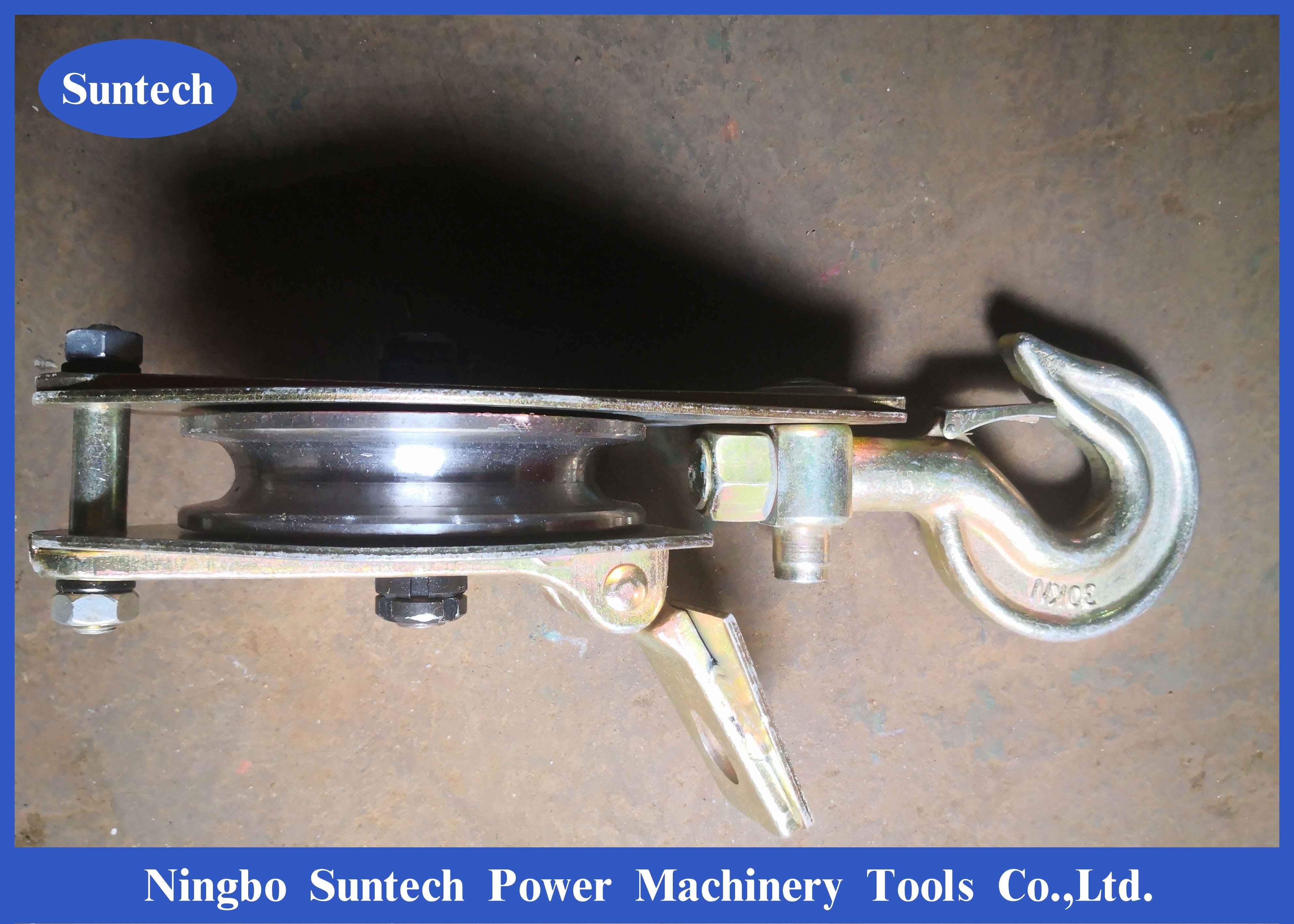

Single Sheave Steel Pulley Block Tower Erection For Lifting Hoisting
Application
This iron hoisting block is used for lifting, to erect pole and tower in line construction, also hoist devices,etc.
Features:
Single Sheave Steel Pulley Block Tower Erection For Lifting,Hoisting, Hoisting point type: hook type G, round eye type H, clevis type B.
Characteristics
Single Sheave Steel Pulley Block Tower Erection For Lifting,Hoisting
1. Single Sheave Steel Pulley Block's material is steel.
2. Single wheel opening hook type.Two or three sheaves are closed.
3. Hosting rion pulley's weight is very light.
4. Durable applying, long life time.
5. Smooth, and bearing inside
6. Little friction to protecting the conductor.
Item Number | Model | Number of Sheave | Rated Load (kN) | Sheave Outer Diameter × Sheave Width (mm) |
Rope Diameter (mm) | Weight (kg) | Hoisting Point Type | ||
11181 | QH1-1K | 1 | 10 | Φ100×31 | Φ7.7 | 2.8 | G | H | |
11182 | QH1-2 | 2 | 10 | Φ80×28 | Φ6 | 2.8 | G | H | |
11183 | QH1-3 | 3 | 10 | Φ80×27 | Φ6 | 4.1 | G | H | |
11191 | QH2-1K | 1 | 20 | Φ120×35 | Φ9.3 | 4.2 | G | H | B |
11192 | QH2-2 | 2 | 20 | Φ100×31 | Φ7.7 | 4.2 | G | H | |
11193 | QH2-3 | 3 | 20 | Φ100×31 | Φ7.7 | 6 | G | H | |
11201 | QH3-1K | 1 | 30 | Φ150×39 | Φ11 | 7 | G | H | B |
11202 | QH3-2 | 2 | 30 | Φ120×35 | Φ9.3 | 5.3 | G | H | |
11203 | QH3-3 | 3 | 30 | Φ100×31 | Φ7.7 | 6.5 | G | H | |
11211 | QH5-1K | 1 | 50 | Φ166×40 | Φ13 | 9.6 | G | H | B |
11212 | QH5-2 | 2 | 50 | Φ150×39 | Φ11 | 10.8 | G | H | |
11213 | QH5-3 | 3 | 50 | Φ120×35 | Φ9.3 | 7.7 | G | H | |
11221 | QH8-1K | 1 | 80 | Φ205×50 | Φ17 | 12.5 | G | H | B |
11222 | QH8-2 | 2 | 80 | Φ166×40 | Φ13 | 17 | G | H | |
11223 | QH8-3 | 3 | 80 | Φ150×39 | Φ11 | 17.5 | G | H | |
11231 | QH10-1K | 1 | 100 | Φ246×60 | Φ18.5 | 25 | G | B | |
11232 | QH10-2 | 2 | 100 | Φ166×40 | Φ13 | 18.5 | H | ||
11233 | QH10-3 | 3 | 100 | Φ150×39 | Φ11 | 20 | H | ||
11241 | QH15-1K | 1 | 150 | Φ280×65 | Φ21.5 | 34 | B | ||
11242 | QH15-2 | 2 | 150 | Φ205×50 | Φ17 | 22 | H | ||
11243 | QH15-3 | 3 | 150 | Φ166×40 | Φ13 | 26 | H | ||
11244 | QH15-4 | 4 | 150 | Φ150×39 | Φ11 | 30 | H | ||
11248 | QH20-4 | 4 | 200 | Φ205×50 | Φ17 | 50 | H |
Nylon Sheave Hoisting Tackle For Your Reference.
