Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | CE,ISO |
Model Number: | SHLH |
Minimum Order Quantity: | 5 pcs |
---|---|
Price: | Negotiated |
Packaging Details: | Exported Box and carton |
Delivery Time: | 5-7days after payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 900pcs/month |
Feature: | Highly Galvanzied | Name: | Cable Pulley Roller |
---|---|---|---|
Using: | Cable Laying | Structure: | Three Roller |
Apply: | Constructure Works | Weight: | 9-25kg |
High Light: | galvanized cable corner roller,triple cable corner roller,ISO cable corner roller |

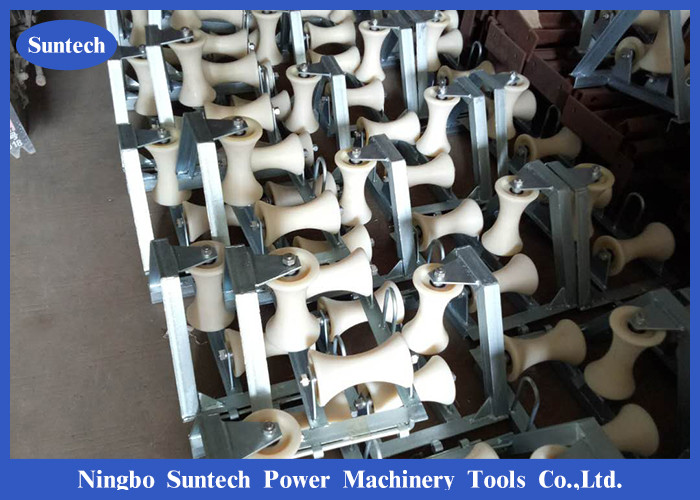

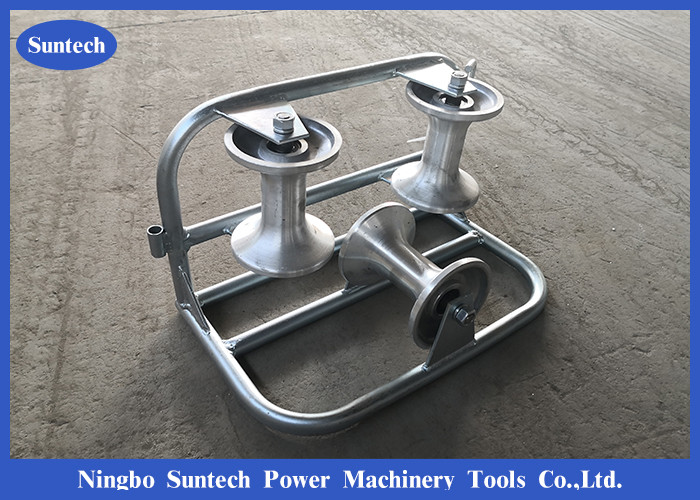

Galvanized Triple Cable Guide Roller For Pulling,Aluminum Corner Roller
Application:Galvanized Triple Cable Guide Roller For Pulling,Aluminum Corner Roller
Heavy duty Triple Corner Cable Roller for use in most cable laying applications. These can be used singularly or linked together using Link Pins to form a full bend. All the Bend Roller range have the same link points to facilitate various bend/roller configurations,
Features:Galvanized Triple Cable Guide Roller For Pulling,Aluminum Corner Roller
• Heavy duty corner roller from tubular sections
• 3off 140mm Diameter Large Waisted Aluminm Rollers
• Sealed roller bearing fitted
• Zinc Plated Finish
• Universal link pin mount positions
• Size 36cm Long x 30cm Wide x 32cm High
• Weight 12 Kg
Technical Data:Galvanized Triple Cable Guide Roller For Pulling,Aluminum Corner Roller
triple corner cable roller | ||||
Model | Rated Load(KN) | Structure | Weight(Kg) | |
Aluminum roller | Nylon roller | |||
SHLH | 10 | three rollers; steel tube frame | 12.4 | 12.0 |
Notes: Roller sizes can be customized accordingly.
