10kn Load Nylon Triple Corner Cable Pulling Rollers

10kn Load Nylon Triple Corner Cable Pulling Rollers

  • 10kn Load Nylon Triple Corner Cable Pulling Rollers
  • 10kn Load Nylon Triple Corner Cable Pulling Rollers
10kn Load Nylon Triple Corner Cable Pulling Rollers
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: SGS,ISO,CE
Model Number: SHL3 or SHL3N
Payment & Shipping Terms:
Minimum Order Quantity: 2sets
Price: Get the newest price
Packaging Details: Pallet or Wooden Case
Delivery Time: In Stock
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300pcs/month
Contact Now
Detailed Product Description
Product Name: Ground Roller Material: Nylon, Aluminum To Choose Too
Wheels: 3 Using: Cable Pulling
Load: 10kn Cable Diameter: Less Than 200mm
High Light:

10kn load cable pulling rollers

,

10kn cable pulling rollers

,

triple corner cable pulling rollers

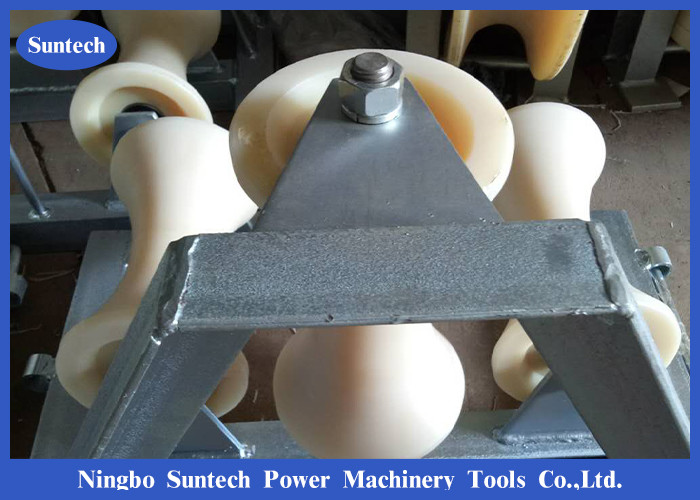

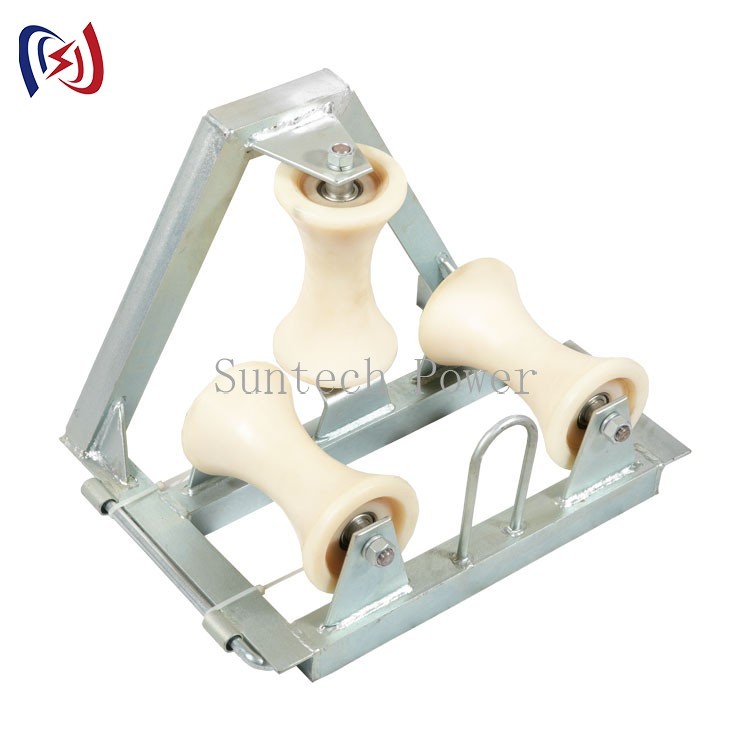

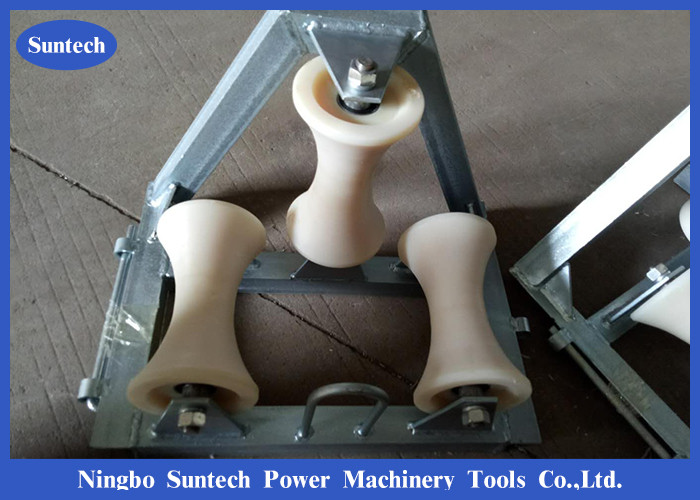

Nylon Triple Corner Ground Roller Assembly,Cable Pulling Tools Load 10KN



Description:

Nylon Triple Corner Ground Roller Assembly,Cable Pulling Tools Load 10KN

Triple Corner Cable Roller, Three Wheel Cable Roller is designed with three wheel, in accordance with the requirements, multiple assembly sets can be combined to arbitrary turning angle, the model with N is nylon roller.

Features:

Nylon Triple Corner Ground Roller Assembly,Cable Pulling Tools Load 10KN

Corner Cable rollers, the cable rollers are used in protecting the cable during cable-laying at the tunnel construction. By the way, if you have more demands on the rollers sizes expecially, we can customized meet for you.

Technical Data

Nylon Triple Corner Ground Roller Assembly,Cable Pulling Tools Load 10KN

Model Rated load(KN) Applicable diameter(mm) Weight(kg)
SHLH2 10 ≤φ150 12
SHLH2N 10 ≤φ150 10
SHLH3 10 ≤φ120 11
SHLH3N 10 ≤φ120 9
SHLH4N 10 ≤φ200 26

10KN Load Nylon Triple Corner Cable Roller Three Wheels Cable Pulling Rollers 010KN Load Nylon Triple Corner Cable Roller Three Wheels Cable Pulling Rollers 1

Model Length Width Height Weight
LRP-001 248mm 248mm 220mm 4.5kgs/pc
LRP-002 350mm 250mm 250mm 3.6kgs/pc
LRP-003 600mm 330mm 330mm 8.5kgs/pc
LRP-004 840mm 450mm 320mm 12kgs/pc
LRP-005 380mm 40mm 80mm 5kgs/pc
LRP-006 160mm 140mm 140mm 1.5kgs/pc
LRP-007 550mm 160mm 210mm 10kgs/pc
LRP-008 300mm 248mm 220mm 12kgs/pc

About us:Lingsheng Tools, which located in the southeast China, it is the origin Power Tools City Domestic. We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work. Our Tubular Gin Pole, Come Along Clamp, Wire Rope Pulley Block, Nylon Sheave Hoisting Tackle, Cable Mesh Sock Grip, Line Stringing Swivel…all are OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world, and has winned the best brand reputations. Some items like the Cable Drum Trailer, and the cable jack stands we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either Technical questions or Products requirements. Please approach us.

Related Rollers

10KN Load Nylon Triple Corner Cable Roller Three Wheels Cable Pulling Rollers 2 10KN Load Nylon Triple Corner Cable Roller Three Wheels Cable Pulling Rollers 3

Our Service

1 Well trained sales team service for you.
2 Small MOQ, usually sample is available.
3 Support OEM & ODM: we can print logo or customs package according to our client’s requirement.
4 Top quality: we have professional QC team to control the quality.
5 Timely delivery: we can send goods within 10~40 days after payment, it depend on products and quantity.
6 We work with DHL, UPS, FedEx, TNT and EMS for small order. For large order we can arrange shipment by air or by sea.
7 Satisfactory service: we treat clients as friends and 24 hours customer service.
