Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | CE,ISO |
Model Number: | SHL3,SHL2,SHL3N |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get the lastest price |
Packaging Details: | Wooden Case or Pallets |
Delivery Time: | 5-7days after Payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 300pcs/month |
Type: | Tri- Roller | Frame: | Steel Tube |
---|---|---|---|
Material: | Aluminum Or Nylon Rollers | Name: | Coner Cable Roller |
Apply: | Gound Corner Roller | Applicable Cable Diameter: | Less Than 200mm |
High Light: | stringing heavy duty cable rollers,200mm heavy duty cable rollers,heavy duty cable stringing rollers |
Electrical Cable Pulling Tools Tri-Roller Corner Cable Roller Assembly

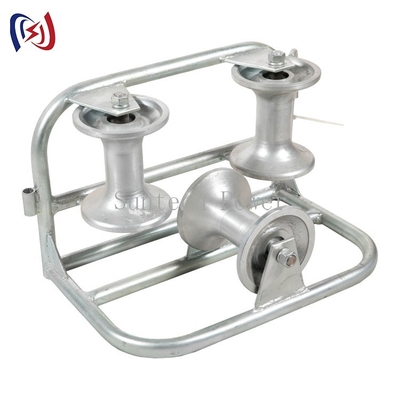

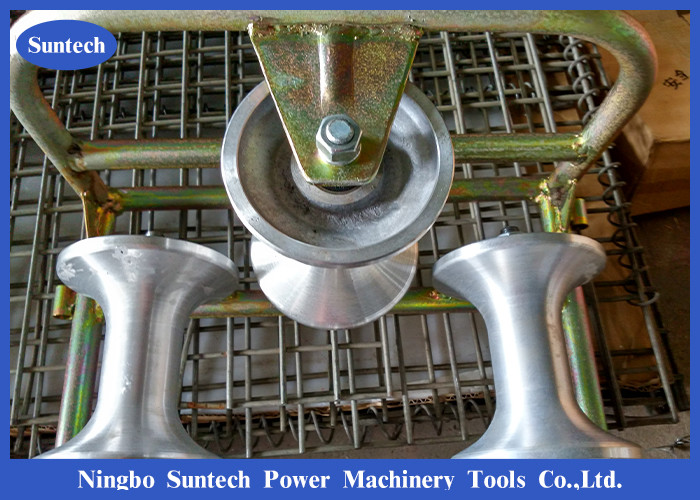

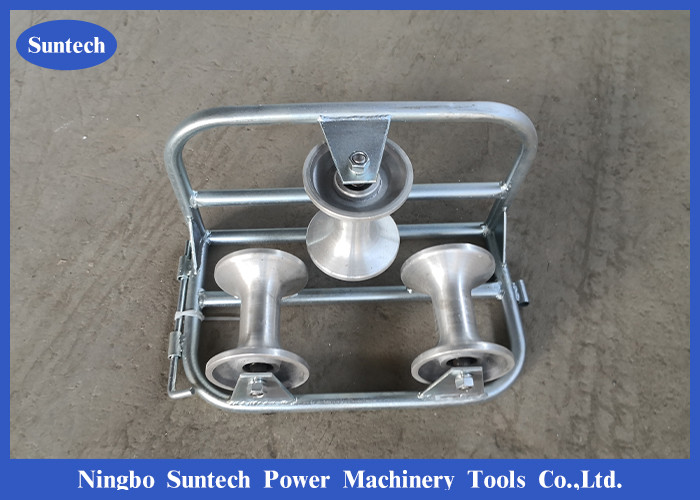

Tri-Roller Corner Cable Roller Assembly
Model | Rated load(KN) | Applicable diameter(mm) | Weight(kg) |
SHLH2 | 10 | ≤φ150 | 12 |
SHLH2N | 10 | ≤φ150 | 10 |
SHLH3 | 10 | ≤φ120 | 11 |
SHLH3N | 10 | ≤φ120 | 9 |
SHLH4N | 10 | ≤φ200 | 26 |
In order to keep the cables in the best condition, cable rollers should always be used when pulling cables but especially in circumstances where the installation area is sharp or abrasive. Cable Rollers also make pulling the cable that much easier as there is less friction between the cable and the surface of the ground.
Cable Rollers are used so that when the cable is being pulled, it runs along the roller and not on the ground. Rollers are available in a range of sizes and can hold a variety of different weights depending on the size of cable. They are also available for applications with inclines and corners. These rollers keep the cable being pulled safe from any damage the surface may cause and also keep them out of any mud or muck that may be at the bottom of the trench. It is advised to not leave cables lying over-night. Prolonged exposure to the elements during the installation process can cause damage to the cables.
