Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | SJS |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | Pallets and Cartons |
Delivery Time: | In Stock |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000pcs per month |
Name: | Steel Turnbuckle | Apply: | Tightening Conductor |
---|---|---|---|
Future: | Light Weight | Weight: | 10kg |
Warranty: | One Year | Usage: | Pulling Steel Strand |
High Light: | Tightening Conductor steel turnbuckle,CE Light Weight steel turnbuckle,10KN Aluminum Alloy Double Hook |

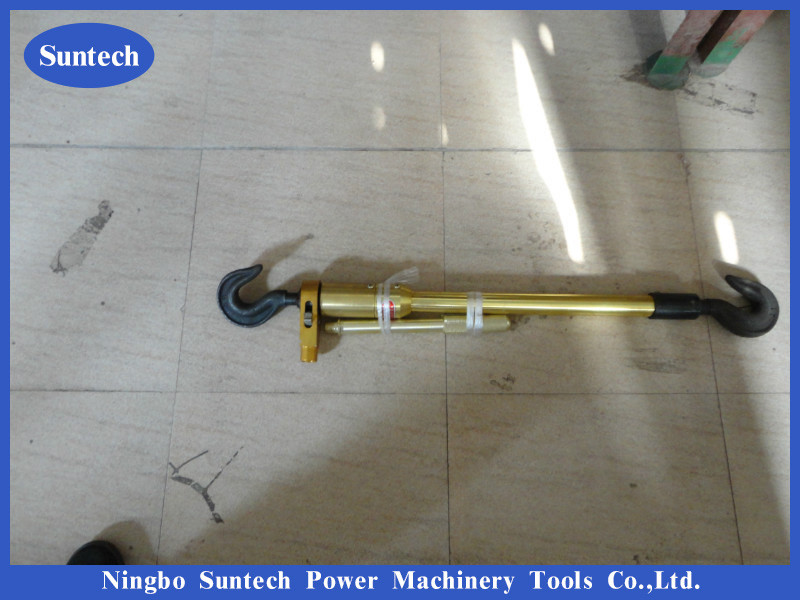

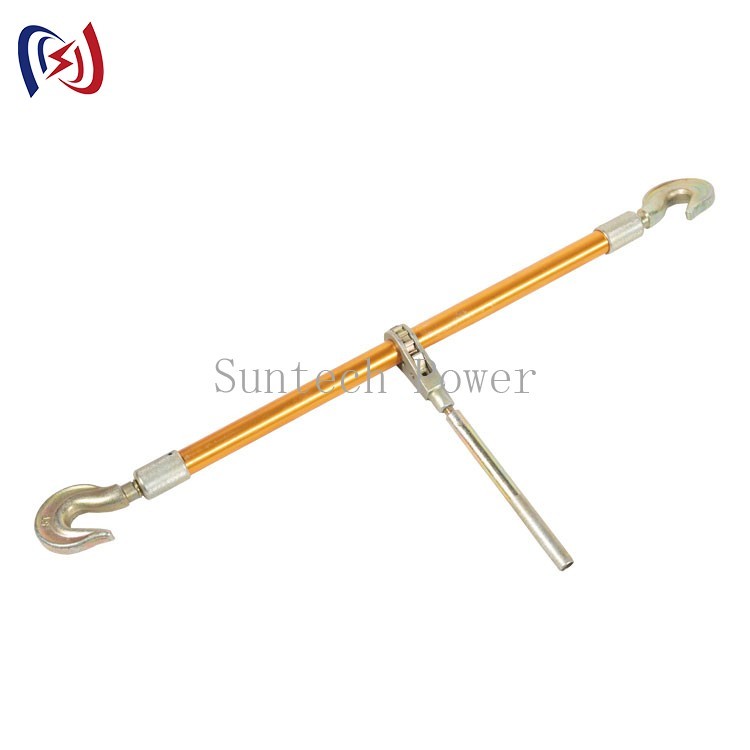

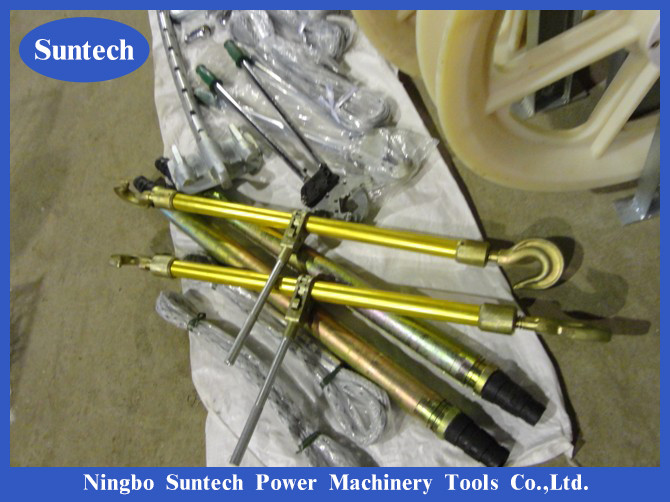

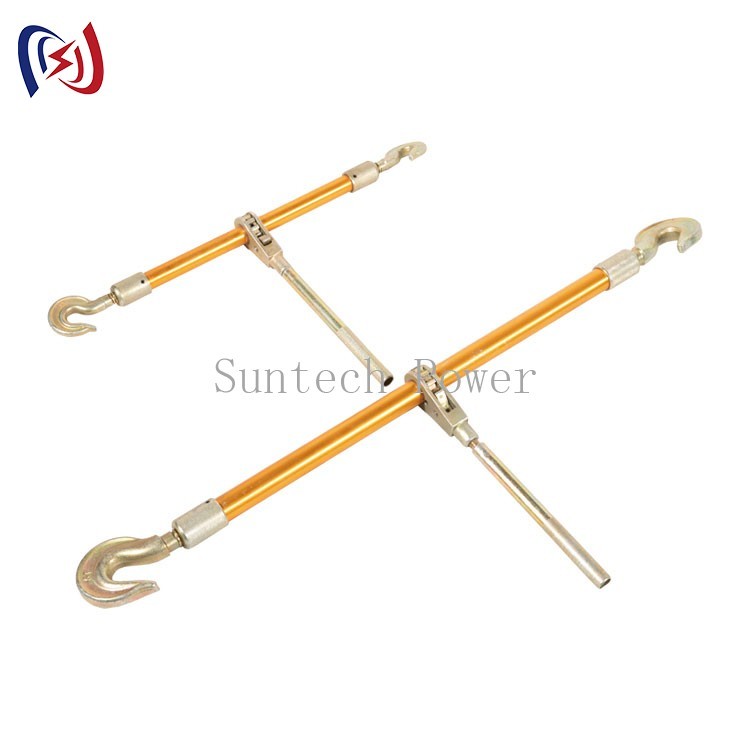

Aluminum Alloy Double Hook Turnbuckle / Light Weight Steel Turnbuckle SJS Model
SJS Model Steel Double Hook Turnbuckle Dual - Hook Aluminum Alloy Turnbuckle
Steel double hook turnbuckle plays a role in tightening the steel wire rope, stranded steel wire, and some others.
This product from 14113 to 14116 can be also provided with the ring structure, which must be clearly indicated in the contract.
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
Detailed Data
Item number | Model | Rated load (kN) | Maximum center distance | Adjustable distance (mm) | Weight (kg) | Remark |
14111 | SJS-0.5 | 5 | 800 | 300 | 2.5 | Steel |
14112 | SJS-1 | 10 | 860 | 250 | 3.5 | |
14113 | SJS-2 | 20 | 1050 | 340 | 4 | |
14114 | SJS-3 | 30 | 1350 | 470 | 6 | |
14115 | SJS-5 | 50 | 1440 | 510 | 8 | |
14116 | SJS-8 | 80 | 1670 | 560 | 8.5 | |
14117 | SJS-10 | 100 | 1740 | 600 | 10 | |
14121 | SJSL-1 | 10 | 768 | 290 | 2 | Aluminum Alloy |
14122 | SJSL-2 | 20 | 936 | 350 | 2.5 | |
14123 | SJSL-3 | 30 | 1296 | 530 | 4.5 | |
14124 | SJSL-5 | 50 | 1500 | 630 | 6 |
Sleeve Type Double Hook Turnbuckle
Description
Item Number | Model | Rated Load (kN) | Max. Distance Between Centers (mm) | Adjustable Distance (mm) | Weight (kg) |
14151 | SJST-1 | 10 | 658 | 290 | 3 |
14152 | SJST-2 | 20 | 865 | 370 | 3.2 |
14153 | SJST-3 | 30 | 970 | 430 | 4.5 |
14154 | SJST-5 | 50 | 1127 | 520 | 7.2 |
