Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | NINGBO |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SHD |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Wooden Cases |
| Delivery Time: | 7-15 DAYS AFTER DEPOSIT |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets per month |
| Material: | Nylon,Aluminum | Type: | Stringing Blocks |
|---|---|---|---|
| Application: | Power Line | Product Name: | ACSR Conductor Stringing Block |
| Size: | 120*30-400*80mm | Rated Load: | 5-20KN |
| Usage: | Power Construction | Sheave Width: | 30-80mm |
| High Light: | single sheave conductor stringing blocks,20KN Conductor Stringing Blocks,80mm Conductor Stringing Blocks |
||

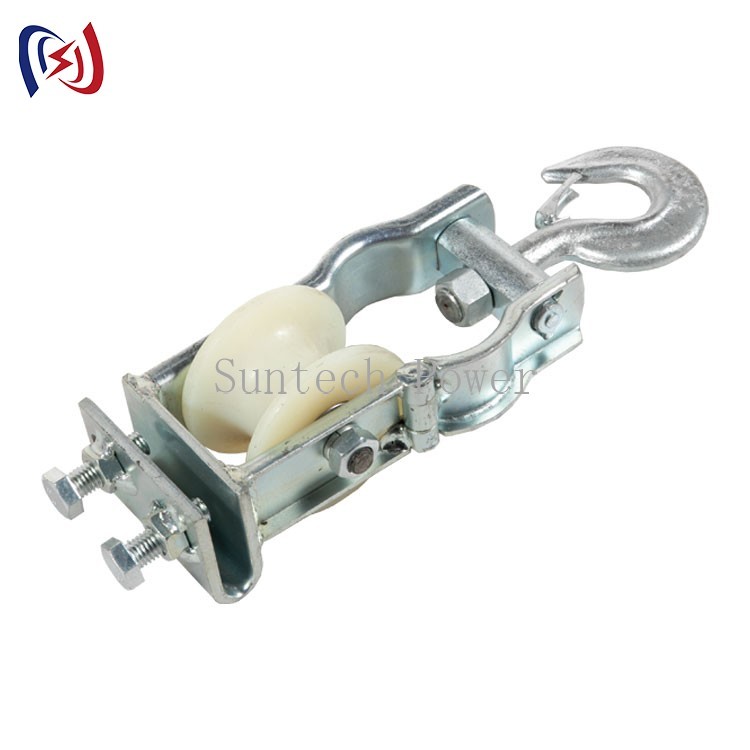

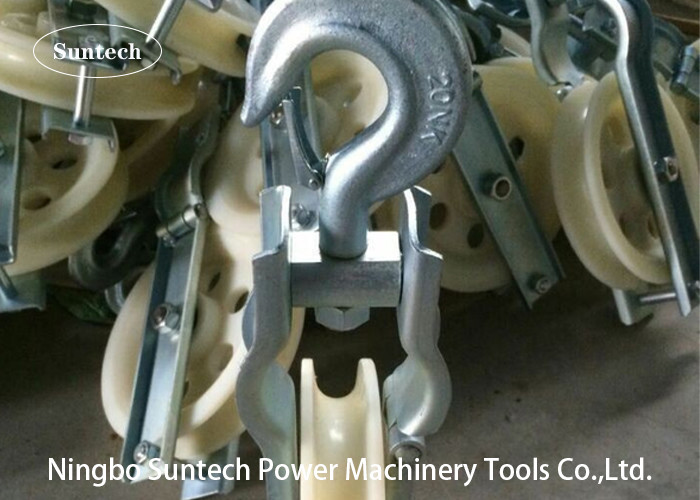

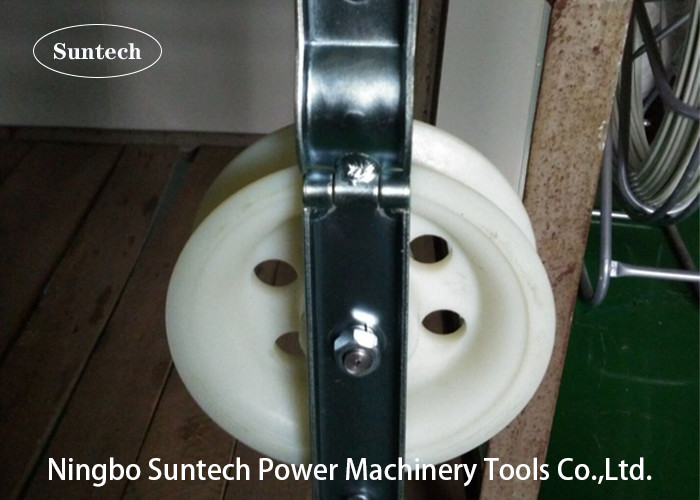

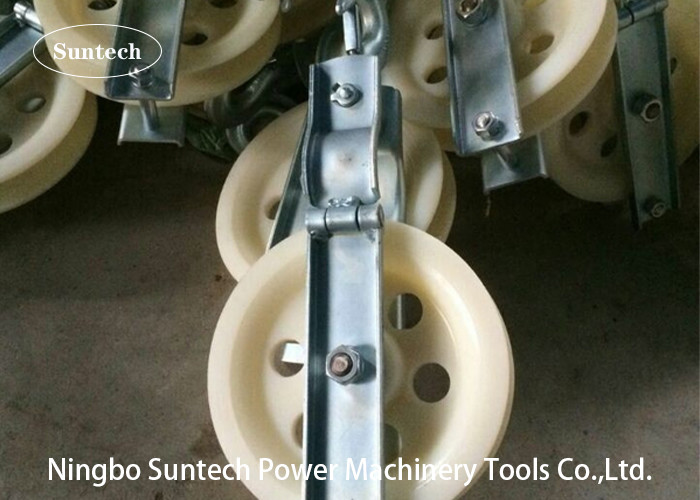

Single Sheave Stringing Block Aluminum sheave , Nylon sheave conductor stringing blocks
Stringing blocks are normally used for stringing medium size conductor overhead transmission line construction.
We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing.
Sizes to Recommend Below
| Item number | Model | Applicable Conductor ACSR | Rated load (kN) | Weight (kg) | Features |
| 10171 | SHD-120x30 | LGJ25~70 | 5 | 1.5 | Rubber lined aluminium sheave |
| 10172 | SHD-160X40 | LGJ95~120 | 10 | 2.5 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10173 | SHD-200X40 | LGJ150~240 | 15 | 4 | |
| 10174 | SHD-200X60 | LGJ150~240 | 15 | 4.6 | MC nylon sheave |
| 10175 | SHD-250X40 | LGJ150~240 | 20 | 4.6 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10176 | SHD-250X60 | LGJ300~400 | 20 | 6 | |
| 10177 | SHD-270X60 | LGJ300~400 | 20 | 7 | MC nylon sheave |
| 10178 | SHD-320X60 | LGJ300~400 | 20 | 9.7 | |
| 10179 | SHD-400X80 | LGJ400~500 | 20 | 15 |
Middle :cast steel sheave Conductor : MC nylon sheave |
