Place of Origin: | Ningbo,Zhejiang,China |
Brand Name: | Newart or OEM |
Certification: | ISO |
Minimum Order Quantity: | 300pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | Plastic Bag inside,Iron Box |
Delivery Time: | 35 days after deposit |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 10000pcs/month |
Type: | Straightener & Cutter, Straightener & Cutter, Strightener | Use: | Pipe |
---|---|---|---|
Dimension(L*W*H): | 300*260*507 | Weight: | 12-15.5KG |
Applicable Industries: | Construction Works | Product Name: | Pipe Straightening Machine Crimp Pipe Straightener |
Application: | Construction Engineering | Maximum Straighten Force: | 20KN |
Single Package Size : | 50X30X20 Cm | ||
High Light: | 20KN Pipe Straightening Machine,LGJ720 Pipe Straightening Machine,LGJ720 Conductor Stringing Tools |

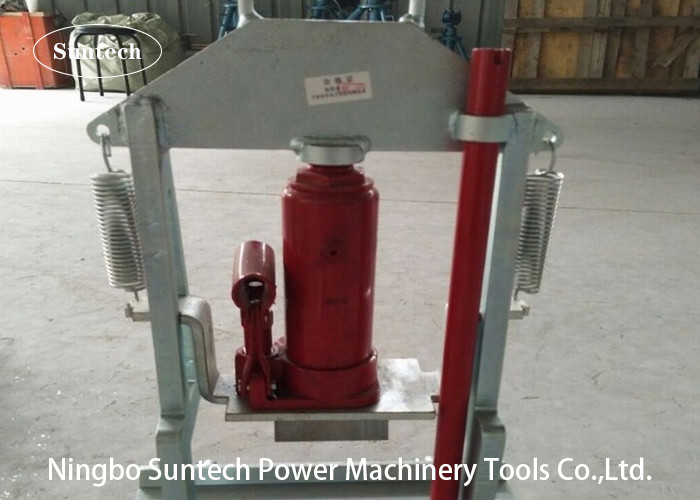

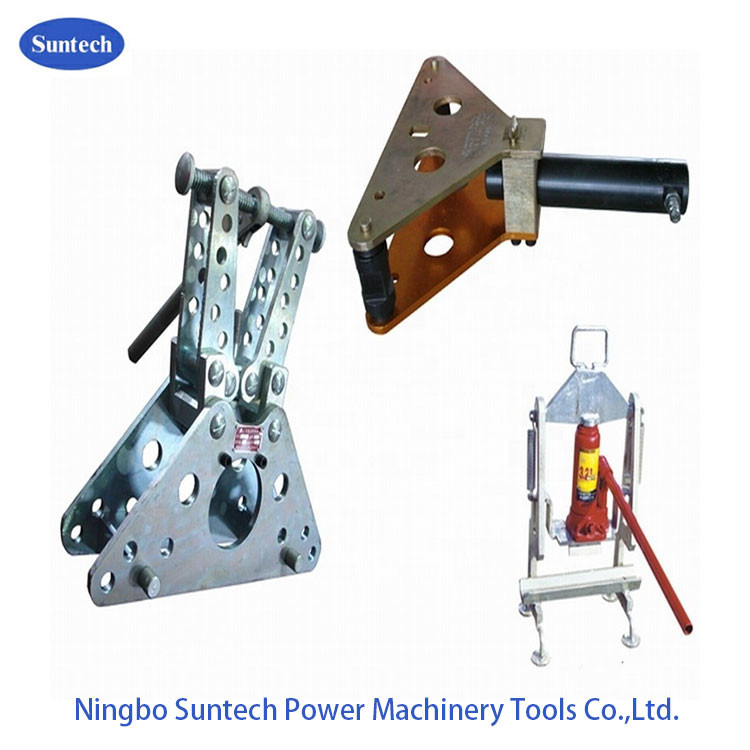

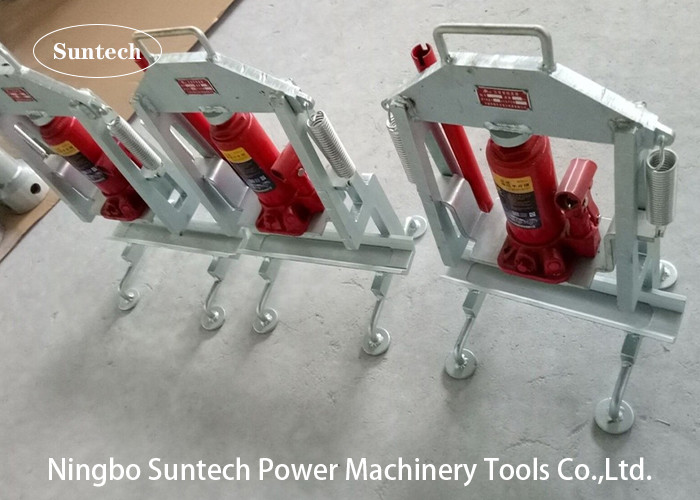

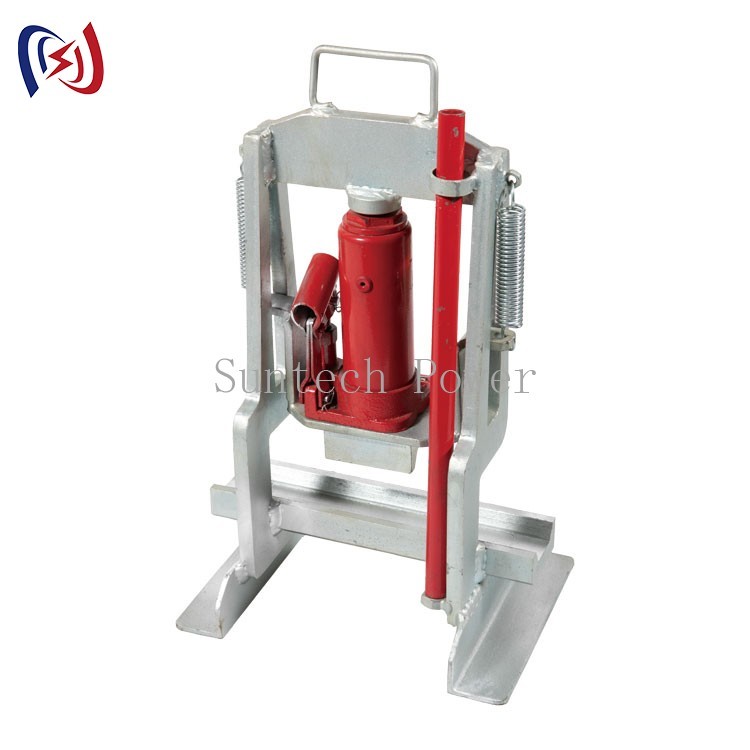

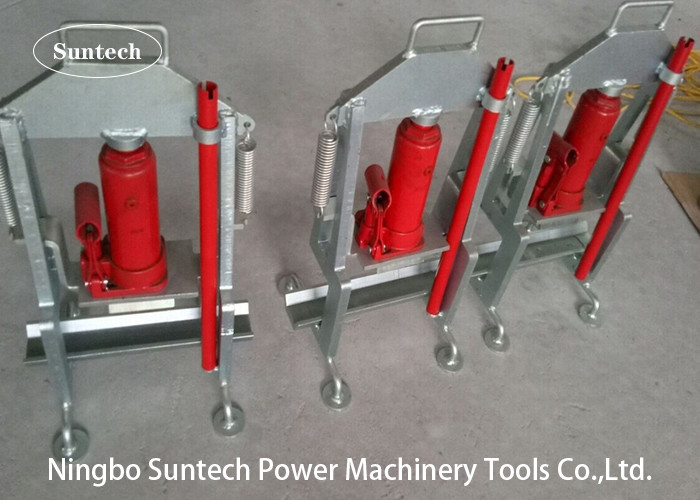

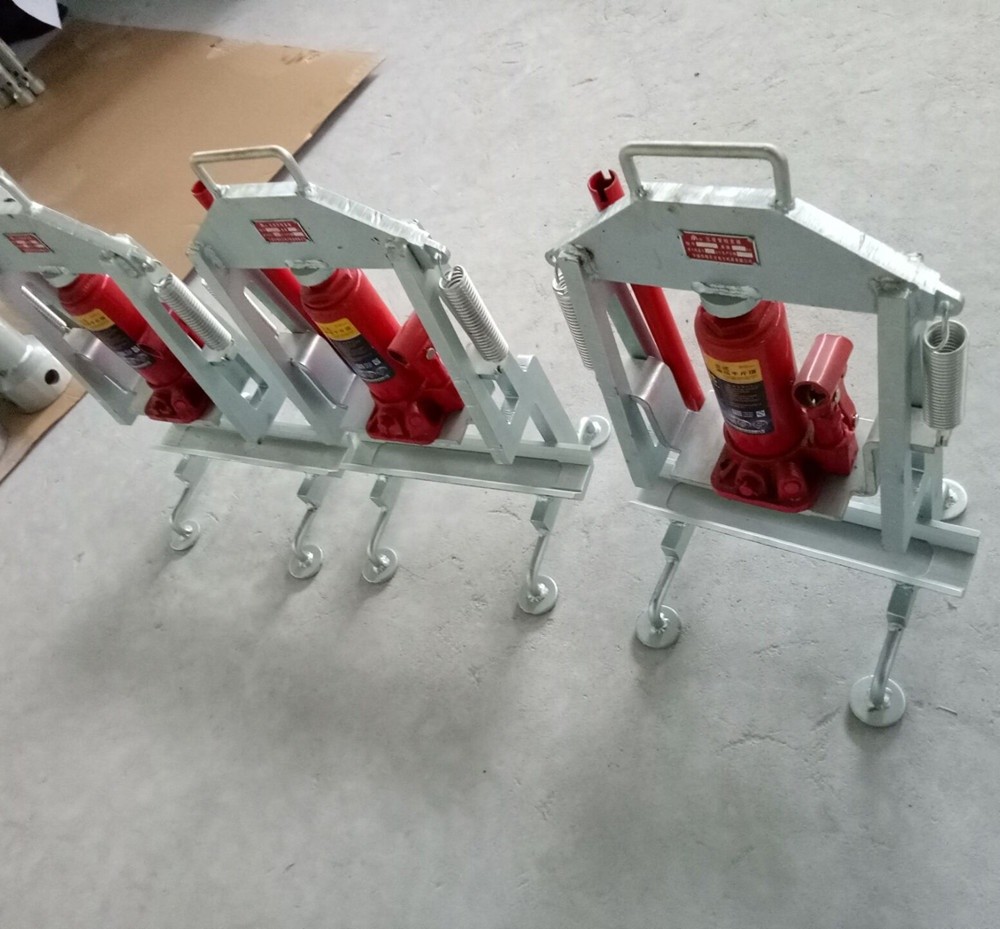

Pipe straightening machine crimp pipe straightener/splicing sleeves straightener
Application
Pipe straightening machine crimp pipe straightener,splicing sleeves straightener is used to press the crimp to bend after crimping.It is applicable for crimping pipe under LGJ720mm.
Configuration
17212 need to purchase mathched manual pump.
Technical Data
Item number | 17211 | 17212 | 17212A` |
Model | YJZ2 | YJZ3 | YJZ4 |
straighten force(KN) |
20 | 50 | 150 |
Application conductor |
LGJ720 | LGJ900 | LGJ1250 |
Diameter of splicing sleeves(MM) |
Φ60 | Φ68 | Φ80 |
Shape siz(MM) | 300X260X507 | 452X391X145 | 400X375X140 |
Weight(KG) | 12 | 13.5 | 15.5 |
