Place of Origin: | China |
Brand Name: | Newart |
Certification: | ISO and CE |
Model Number: | JW1500B |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | Cartons |
Delivery Time: | 35-40days after deposit |
Payment Terms: | T/T |
Supply Ability: | 2000pcs/months |
Type: | Joints, Joints | Application: | Connect, Power Construction |
---|---|---|---|
Material: | Steel | Warranty: | One Year |
Used: | Connecting | Product Name: | Anti-twist Connector |
High Light: | 320KN Anti Twist Connector,280KN Anti Twist Connector,Rigid 280KN Connector Cable Joints |

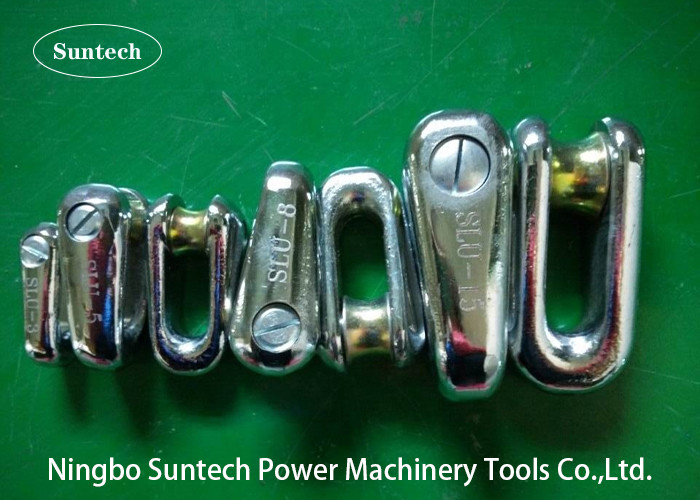

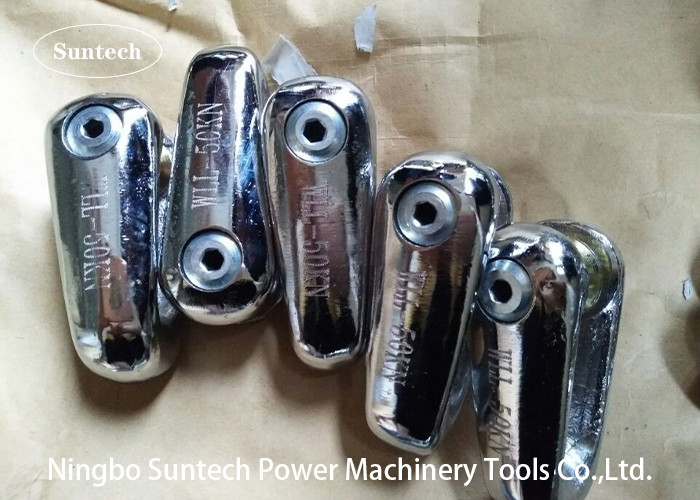

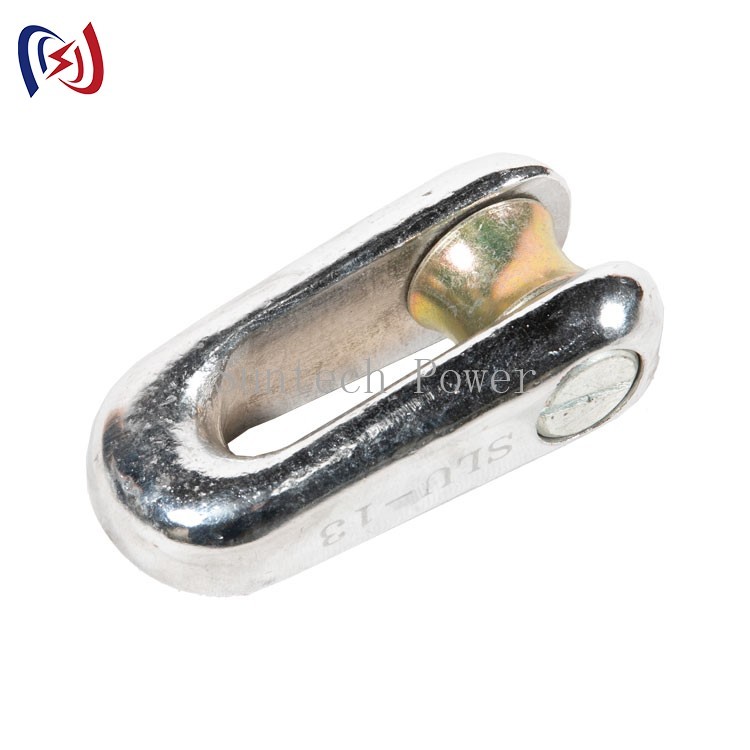

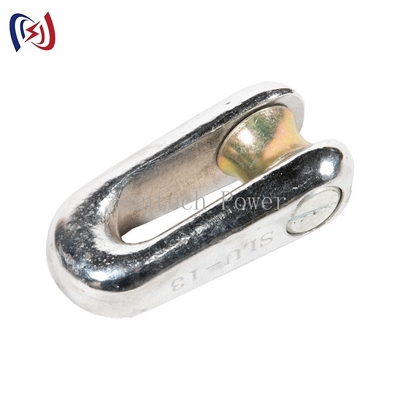

Cable/Steel Wire Rope Joints Fixed Joint Anti-twist Connector
Feature
Item number | Model |
Rated Load (KN) |
Main Size(mm) |
Weight (kg) |
|||||
A | B | C | d | D | E | ||||
17111 | SLU-1 | 10 | 36 | 68 | 18 | 10 | 14 | 29 | 0.2 |
17112 | SLU-3 | 30 | 37 | 76 | 20 | 12 | 17 | 31 | 0.22 |
17113 | SLU-5 | 50 | 50 | 96 | 21 | 18 | 19 | 42 | 0.6 |
17114 | SLU-8 | 80 | 56 | 96 | 23 | 18 | 19 | 42 | 0.6 |
17115 | SLU-10 | 100 | 59 | 126 | 30 | 22 | 26 | 54 | 1.2 |
17116 | SLU-13 | 130 | 61 | 134 | 32 | 24 | 27 | 56 | 1.3 |
17117 | SLU-15 | 150 | 63 | 138 | 37 | 27 | 28 | 58 | 1.4 |
17117A | SLU-18 | 180 | 63 | 138 | 37 | 27 | 28 | 58 | 1.4 |
17118 | SLU-25 | 250 | 80 | 178 | 44 | 30 | 35 | 72 | 3.0 |
17118A | SLU-28 | 280 | 80 | 178 | 44 | 30 | 35 | 72 | 3.0 |
17119 | SLU32 | 320 | 85 | 186 | 42 | 30 | 38 | 80 | 3.9 |
