15KN 80KN Conductor Mesh Socks Stringing Pulling Grip For Cable Or Wire

15KN 80KN Conductor Mesh Socks Stringing Pulling Grip For Cable Or Wire

  • 15KN 80KN Conductor Mesh Socks Stringing Pulling Grip For Cable Or Wire
  • 15KN 80KN Conductor Mesh Socks Stringing Pulling Grip For Cable Or Wire
  • 15KN 80KN Conductor Mesh Socks Stringing Pulling Grip For Cable Or Wire
15KN 80KN Conductor Mesh Socks Stringing Pulling Grip For Cable Or Wire
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: SLW(S)
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Get Latest Price
Packaging Details: Export Cases and Pallets
Delivery Time: In Stock
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs/month
Contact Now
Detailed Product Description
Type: Pulling Wires Material: Steel
Warranty: One Year Rated Load: 15-80KN
Product Name: Conductor Mesh Socks Joints Size: 70-1120mm2
Feature: Easy Surface Treatment: Galvanized
Usage: Power Line Construction
High Light:

80KN Conductor Mesh Socks

,

15KN Conductor Mesh Socks

,

Conductor Mesh Socks Joint

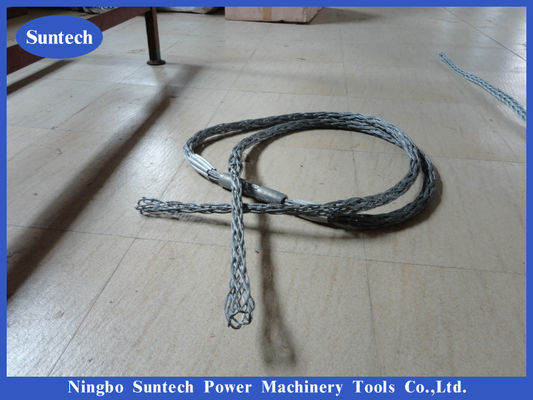

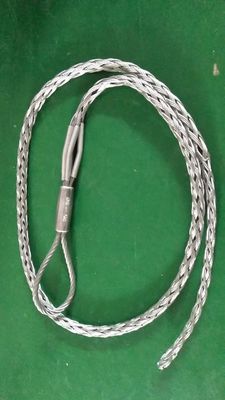

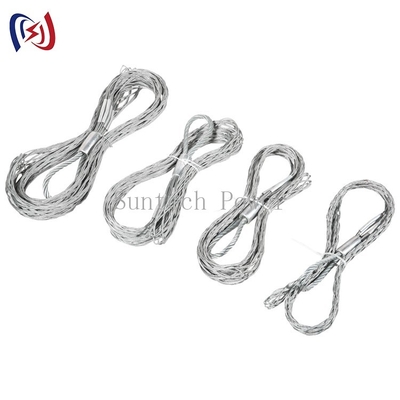

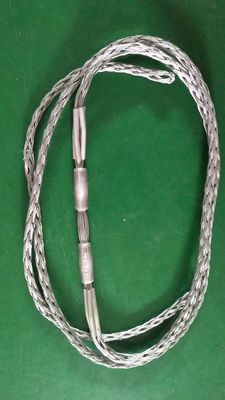

15KN 80KN Conductor Mesh Socks Stringing Pulling Grip For Cable Or Wire


Feature

1.As well as advantages of light weight, large tensile load, not damage line, convenient to use and so on.It is also soft and easy to strench.

2.The most ideal tool for electric power construction. Applicatoin Hot sale cable pulling hoisting grip,cable sock is used for buried or pipe traction on ground power cables.

3.It can pass all kinds of pay-off pulley. Use Method First press the opening of the net sleeve with the palm of your hand to open it, then start to wear the cable inward.

4.The deeper the cable is worn, the greater the pulling force. The mesh body of the net sleeve is in the form of a grid, and the tension is tightened during construction.

5.After the construction is completed, you only need to apply force in the opposite direction to remove the net sleeve. The net sleeve can be pulled by hand or lifting tool to achieve the function of wiring and protecting the cable.

Technical Data

Item number
Model
Applicable Conductor(ACSR)
Rated Load
(KN)
Single head
Double head
17161
17181
SLW(S)-1.5
ACSR70-95
15
17162
17182
SLW(S)-2
ACSR120-150
20
17163
17183
SLW(S)-2.5
ACSR185-240
25
17164
17184
SLW(S)-3
ACSR300-400
30
17165
17185
SLW(S)-4
ACSR500-600
40
17166
17186
SLW(S)-5
ACSR720
50
17167
17187
SLW(S)-7
ACSR900
70
17168
17188
SLW(S)-8
ACSR1000-1120
80
17169
17189
SLW(S)-12
ACSR1250
120

15KN 80KN Conductor Mesh Socks Stringing Pulling Grip For Cable Or Wire 0
