Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Donghuan |
| Certification: | ISO |
| Model Number: | EPCB-301 & EPCB-401 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |

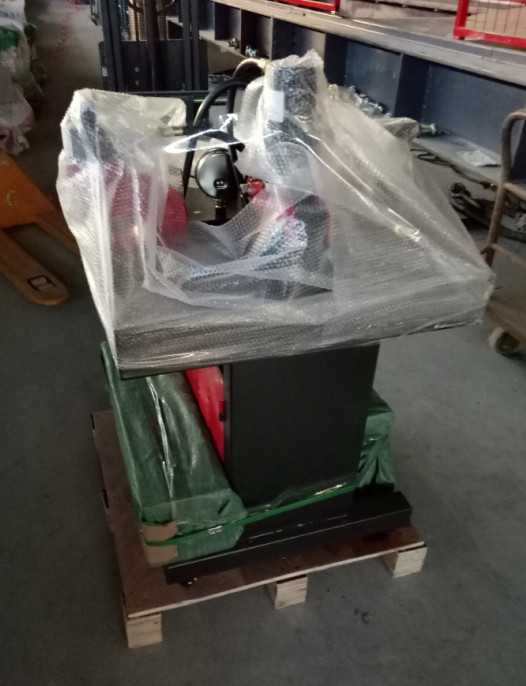

| Packaging Details: | Designed by parts to load into container |
| Delivery Time: | 15days after Payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5pcs per two months |
| Product Name: | Hydraulic Bus Bar Machining Machine | Application: | Power Construction |
|---|---|---|---|
| Crimping Force:: | 60T | Stroke: | 24mm |
| Weight: | Approx.N.W.20kg | Crimping Type: | Hexagon Crimping |
| Type: | Hydraulic Crimping Tools | Package: | Wooden Case |
| High Light: | Hydraulic BusBar Machine,Generatrix Hydraulic BusBar,Copper Hydraulic BusBa |
||

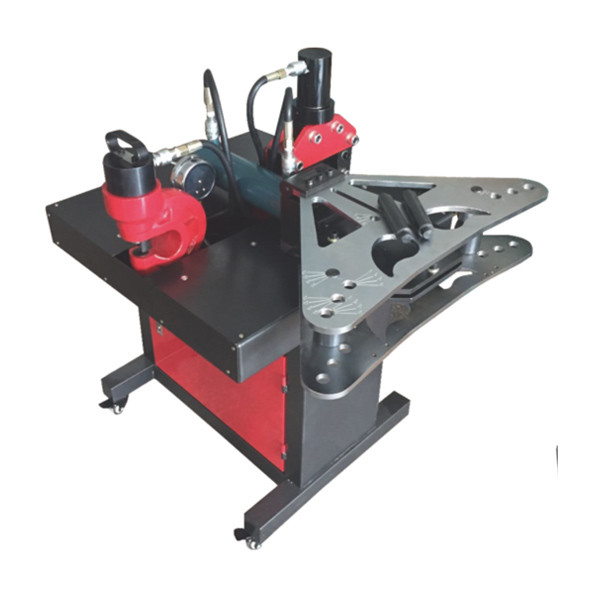

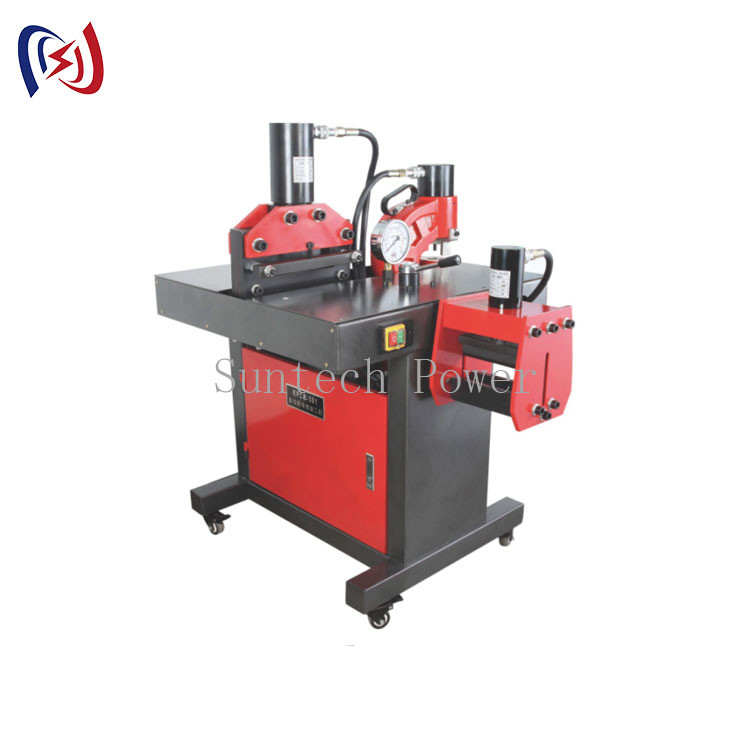

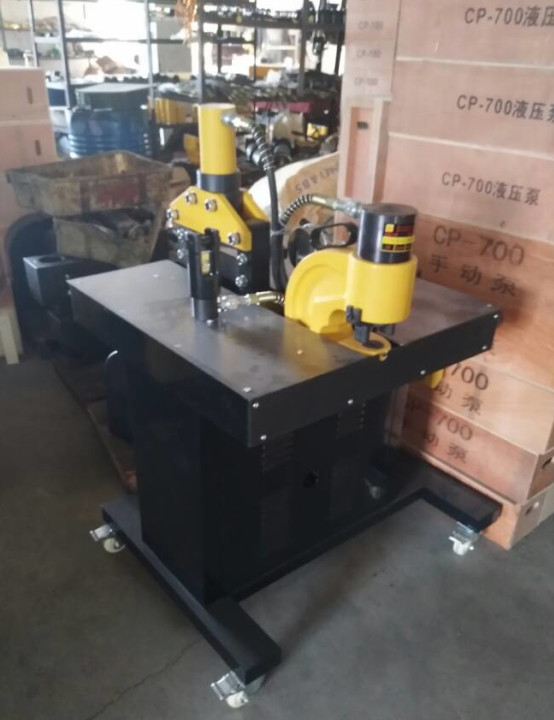

Multifunctional Copper bus bar Generatrix Hydraulic Bus Bar Machining Machine
Multi-function Bus-bar Processing: Cutting, Punching, Bending(horizontal and erective), Crimping and Embossing, etc.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1.Take First-Class Quality as Target and First-class Service.
2.Customer in Heart, Quality in Hand, Technology in the Lead.
Specification
| Item number | 06232 | 06231A | 06231 |
| Model | EPCB-301 | EPCB-401A | EPCB-401 |
| Function |
with three functions,cutting, punching and bending |
punching, bending and crimping |
with four functions,cutting, punching and bending(horizontal and erective) |
|
Dimension of work table |
approx.690x690x730mm | approx.690x690x730mm | approx.690x690x730mm |
|
Voltage single phase |
220V50HZ | 220V50HZ | 220V50HZ |
|
Rating oil pressure |
700kg/cm² | 700kg/cm² | 700kg/cm ² |
| Bending force | 170KN/200KN | 170KN/200KN | 270KN |
| Bending range | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 125x12.5mm max |
| Cutting force | 200KN/300KN | 200KN/300KN | 200KN/300KN |
| Cutting rang | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max | 150x10mm max/200x12mm max |
| Punching force | 300KN/350KN | 300KN/350KN | 300KN/350KN |
|
Distance from hole to sheet side |
95x110mm max | 95x110mm max | 95x110mm |
| Punch rang |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
Φ10.5mmΦ13.8mm Φ17mmΦ20.5mm |
3/8"(Φ10.5mm),1/2"(Φ13.8mm), 5/8"(Φ17mm),3/4"(Φ20.5mm) |
| Package | wooden case | wooden case | wooden case |
Contact Person: Peter
Tel: 86-13958364836
