Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | China |
| Brand Name: | Donghuan |
| Certification: | ISO,CE |
| Model Number: | EC-40 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Filmed and fixed into container |
| Delivery Time: | 35days after Payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 700pcs per month |
| Product Name: | Hydraulic Battery Powered Automatic Cable Cutter | Weight: | 10-17KG |
|---|---|---|---|
| Type: | Cutter | Wanrranty: | 1 Year |
| Package: | Plastic Box | Material: | Alloy Steel |
| High Light: | Lithium Battery Automatic Cable Cutter,EC-40 Automatic Cable Cutter,17KG automatic cable cutting machine |
||

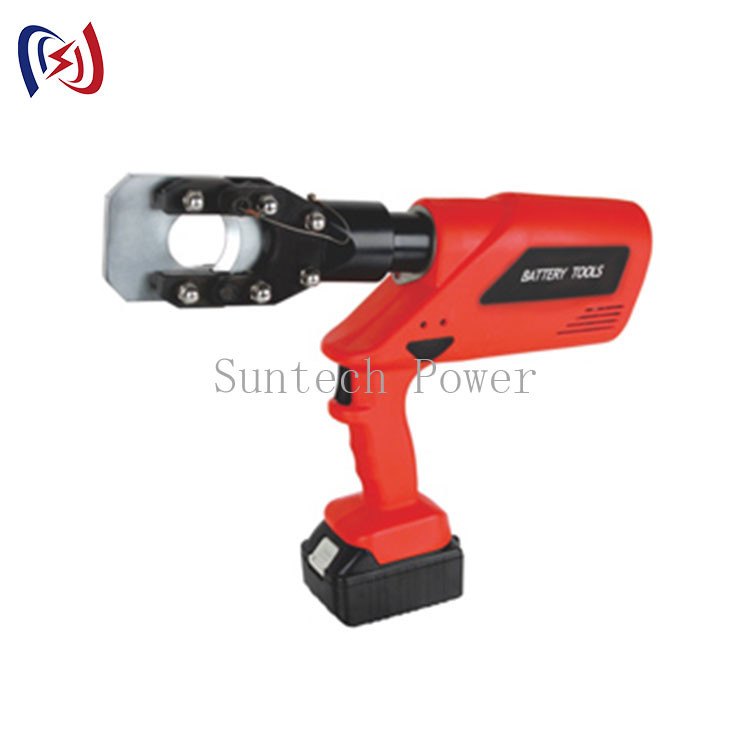

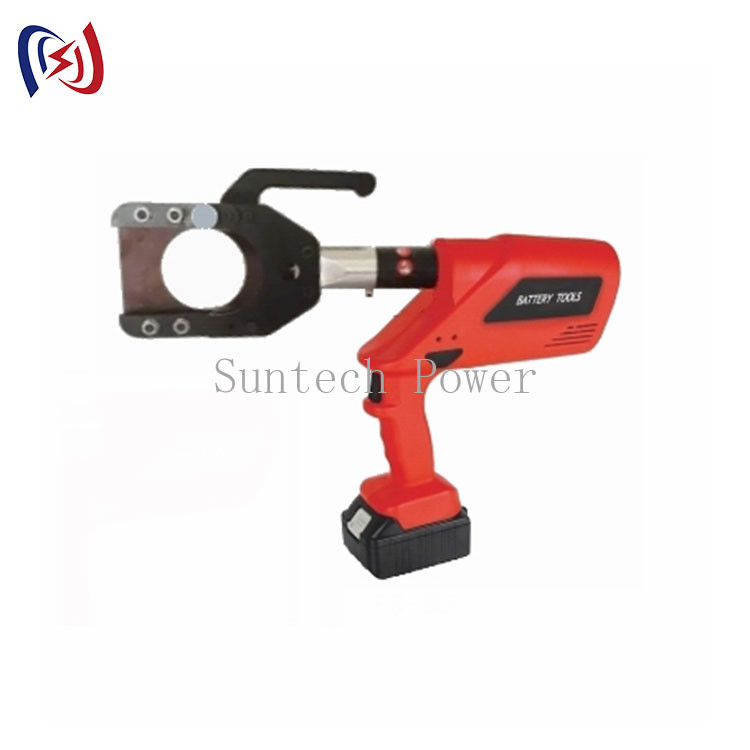

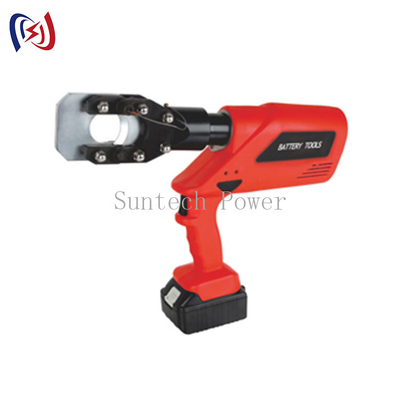

Portable Electric Hydraulic Cable Cutter Lithium Battery Powered Charging Type
Charging type Hydraulic Cable Cutter
Hydraulic Cable Cutter Feature
One key control
Cutting head rotates 350°
Two stage hydraulics
Shorter charging cycles
Automatic retraction when crimp is completed
Battery power display
Hydraulic Cable Cutter Technical Data
| Item number | 21448 | 21448A | 21448B |
| Model | EC-40 | EC-85 | EC105 |
|
Crimping force
|
60KN | 60KN | 120KN |
|
Cutting range |
armored CU/AL cable Φ40mm max |
armored CU/AL cable Φ85mm max |
armored CU/AL cable Φ105mm max |
| Stroke | 40mm | 85mm | 105mm |
|
voltage |
18V | 18V | 18V |
| Capacity | 3.0Ah | 3.0Ah | 3.0Ah |
|
Charging time |
2hours | 2hours | 2hours |
| Weight |
approx.N.W5.5KG G.W11.5KG |
approx.N.W8.5KG G.W14.5KG |
approx.N.W13.0KG G.W20KG |
| Package |
lastic box 570*500*130mm |
plastic box 570*500*130mm |
plastic box 570*500*130mm |
Contact Person: Peter
Tel: 86-13958364836
