Place of Origin: | Ningbo Port |
Brand Name: | Donghuan |
Certification: | ISO9001 |
Model Number: | CB-150D |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Carton |
Delivery Time: | 15 days after deposit |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 700pcs per month |
Application·: | Power Construction | Type: | Hydraulic Busbar Bender |
---|---|---|---|
Product Name: | Hydraulic Bus-Bar Bender | Package: | Box |
Bending Force: | 170KN | Weight: | Approx.n.w17KG |
Warranty: | 1 Year | Name: | Hydraulic Bus Bar Bender |
High Light: | 170KN Bus Bar Bender,copper busbar bending machine,hydraulic busbar bending machine |

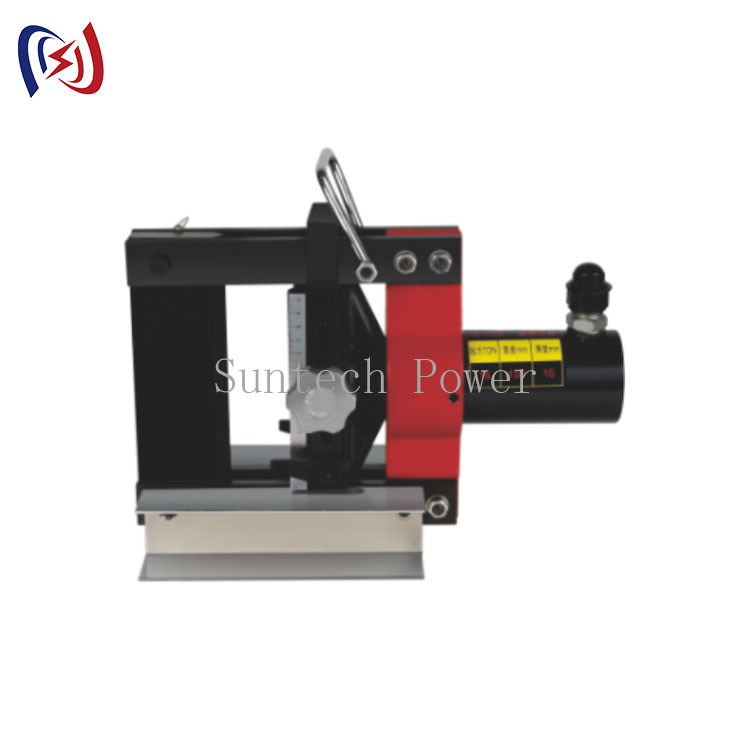

Model CB-150D Portable Electric Hydraulic Bus-Bar Pipe Bender Manual Bar Bender
Manual Bar Bender Application
16T CB-150D portable hydraulic bus bar bender is durable due to fixed structure, and bending plane is adopted for support. Equipped with scale plate, it can look for the bending angle. And bending range is from 0 to 90 °. Working with a manual hydraulic pump or an electric hydraulic pump.
Manual Bar Bender Specification
Item number | 06242 | 06242A |
Model | CB-150D | CB-200A |
Bending force | 170KN | 170KN |
Max thickness of sheet | CU/AL plate 10mm | CU/AL plate 12mm |
Width of sheet | CU/AL plate 150mm | CU/AL plate 200mm |
Height | approx.250mm | approx.340mm |
Weight |
approx.N.W17KG G.W20.5KG |
approx.N.W27KG G.W30.4KG |
Package | wooden case | wooden case |
Manual Bar Bender Pictures
