| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | 12-A/12-B |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Exported Cases or Containers |
| Delivery Time: | 7-9 workdays |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |
| Name: | Walking Tractor Winch | Type: | Diesel Drive |
|---|---|---|---|
| Ground Clearance(MM): | 150mm | Wheel-base(MM): | 1040mm |
| Power(HP): | 15HP | Speed(RPM): | 2000RPM |
| High Light: | Tractor Drive Cable Pulling Winch,No Twist Cable Winch Puller,Cable Winch Puller 2000RPM |
||

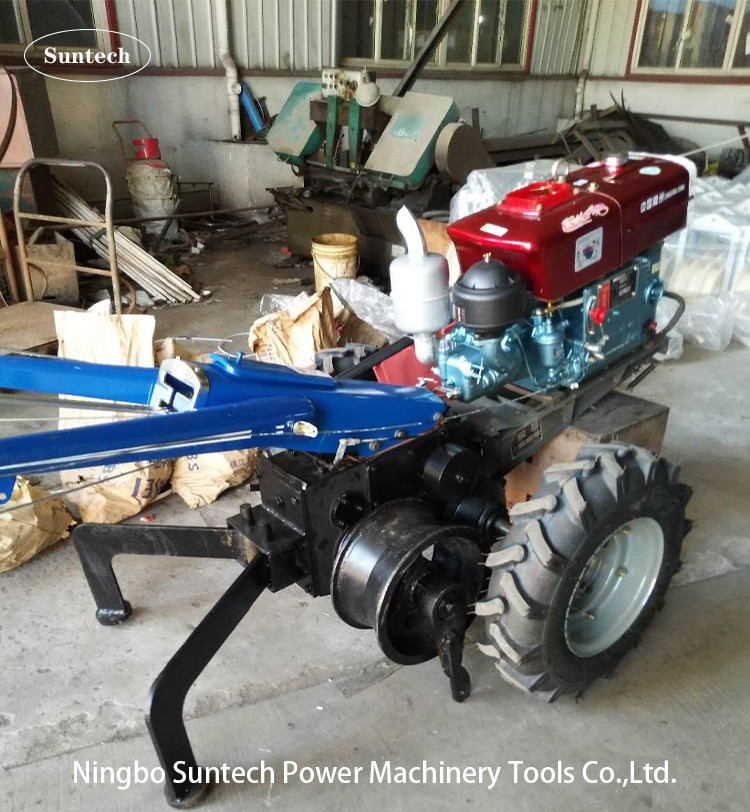

Double Drums 5T Cable Walking Tractor Winch For Power Transmission
Cable Winch Puller Features
Four gear,forward gear and reverse gear
Double drum,seven groove,protect the wire rope
speedy and convenient
The grinding of walking tractor is reformed from 12 type walking tractor.
Cable Winch Puller Specifications:
| Item number | Model | Ground | wheel-base(MM) | Power(HP) | speed(RPM) | Travel speed(KM/H) | Outline | Weight(KG) |
| Clearance(MM) | size(MM) | |||||||
| 9171 | 12-A | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 550 |
| 9172 | 12-B | 150 | 1040 | 15 | 2000 | 3-13 | 2670x1040x1300 | 600 |
| Gear | Ⅰ | Ⅱ | Ⅲ | IV | reversalⅠ | reversalⅡ | ||
| Traction force(T) | 60 | 37 | 20 | 12 | / | / | ||
| Traction speed(M/MN) | 11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
