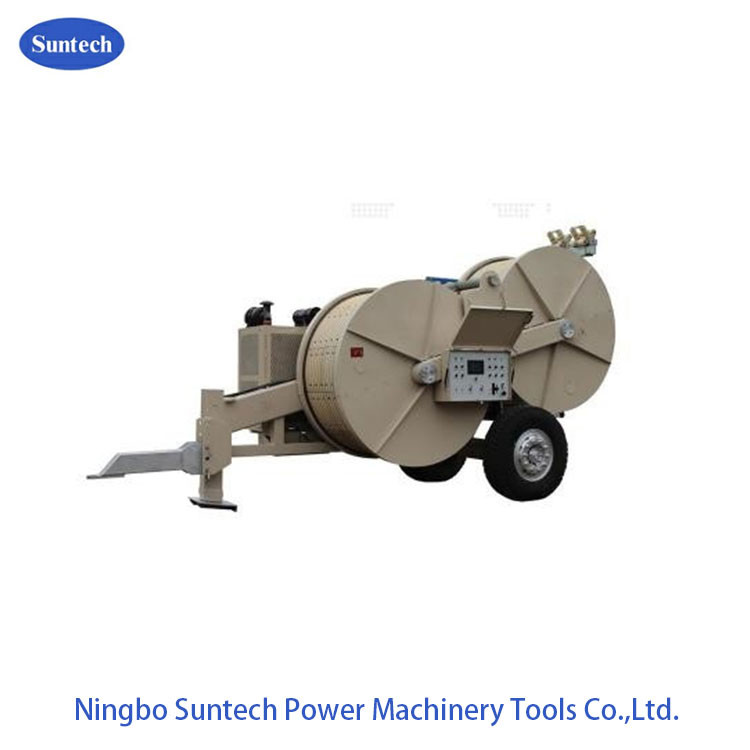

180KN Hydraulic Cable Tensioner Construction Equipment In Site

180KN Hydraulic Cable Tensioner Construction Equipment In Site

Apply to paying off 2 fission ACSR-630 and the following size conductor in mountainous and hilly land area,

Paying off fission ACSR-720 and the following size coductor in flat area, Paying off OPGW,

ADSS or 500kv pulling rope in various area, and replacing lines under all-weather situation.

• Essential parameter
• Maximum Tension(kN):2×90 or 1×180 ,
• Continuous Tension(kN):2×80 or 1×160,
• Maximum speed (km/h):5
• Bull wheel bottom of groove diameter(mm):Φ1850
• Number of grooves:2×6
• Maximum pull-back (kN):2×90 or 1×180
• Maximum pull-back speed(km/h):2×1.7
• Maximum suitable conductor diameter (mm): Φ48.8
• Engine power /speed (kW/rpm):82.5/2500
• Dimensions (mm): 5300×2290×2950
• Weight(kg):10500

• • Specification:

    1. Configuring Germany KPM gear reducer, AKG or U.S. TTP radiator;
    2. Configuring Germany Rexroth hydraulic motor, hydraulicpump or U.S. Sauer hydraulicpump;
    3. Configuring Beijing DEKEYEYA hydraulic valve.

  • Item number		7198	7199	7201	7208
    Model		SA-YZ2x70	SA-YZ2x80	SA-YZ2x90	SA-YZ4x50
    		Puller and Tensioner
    Maximum Tension(KN)		2x70/1x140	2x80/1x160	2x90/1x180	4x50/2x100
    		2x65/1x130	2x70/1x140	2x80/1x160	4x45/2x90
    Continuous Tension(KN)
    Maximum speed(KM/H)		5	5	5	5
    Bottom of groovr diamere(MM)		Φ1700	Φ1700	Φ1700	Φ1600
    Number of groovr(KN)		2x5	2x5	2x6	4x5
    Number of groovr(KM/H)		2x63/1X126	2x63/1X126	2x90/1X180	4x50/2X100
    maximum speed back(MM)		2x1.6	2x1.6	2x1.7	4x1
    Diameter of Maximum suitable Conductor		Φ45	Φ45	Φ48.8	Φ42.5
    Engine power/speed(KW/RPM)		82.5/2500	82.5/2500	82.5/2500	82.5/2500
    Dimensions(M)		5.3×2.3×2.9	5.3×2.3×2.9	5.3×2.3×2.9	5.3×2.3×2.9
    Weight(KG)		8500	8500	10500	12000

•
