Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: SA-YZ4X50
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Exported Containers
Delivery Time: IN
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200pcs per month
Contact Now
Detailed Product Description
Product Name: Cable Tensioner Max Tension: 4X50/2X100
Usage: Power Construction Dimensions: 5.3X2.3x2.9m
Weight: 12000kg Continuous Tension: 4X45/2X90
Bottom Of Groove Diameter: 1600 Max Pull Back: 4X45/2X100KN
High Light:

4 Bundled Conductor Tensioner

,

2X100KN Hydraulic Puller Tensioner

,

4 Bundled Hydraulic Puller Tensioner

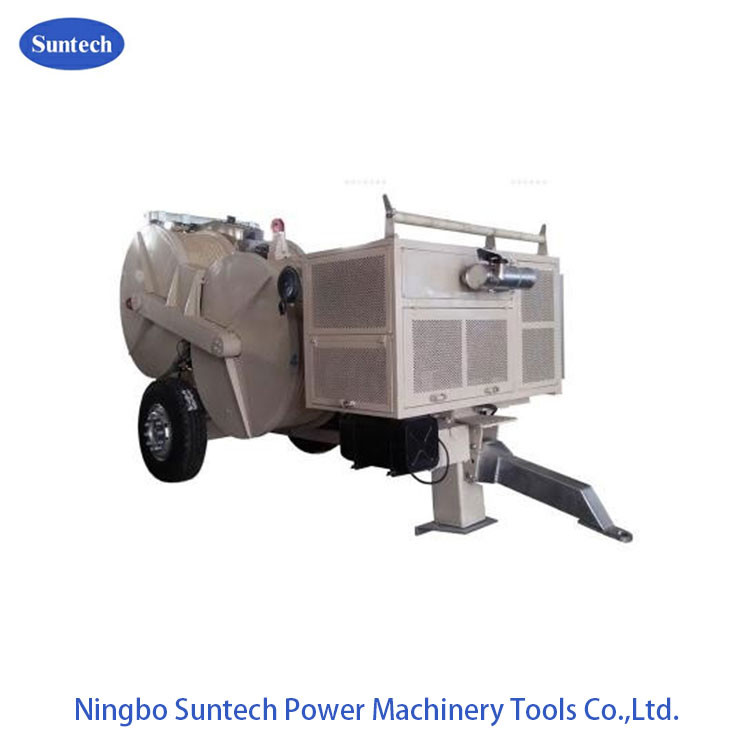

Cable Tensioners SA-YZ4X50 Hydraulic Puller Tensioner For Four Bundled Conductor

    • It’s used for stringing various conductors and earth wires.suitable for stringing two bundle conductors or four bundle conductors
    • Feature
    • Bull wheel with wearproof MC nylon lining segments.
    • Infinitely variable tension control and constant tension conductor stringing .
    • Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
    • Attached four sets of hydraulic power output interface to connect hydraulic conductor reel stand .
  • Main component
  • Engine :Cummins water cooled diesel engine .
  • Main pump/motor : Rexroth (BOSCH)
  • Main hydraulic valve : Rexroth (BOSCH)
  • Reducer : RR (Italian)
  • Item number 7208 7223 7228
    Model SA-YZ4x50 SA-YQZ40D SSA-YQZ60
    Maximum Tension(KN) 4x50/2x100 40 60
    Continuous Tension(KN) 4x45/2x90 35 35
    Maximum speed(KM/H) 5 5 5
    Bottom of groovr diamere(MM) Φ1600 Φ1200 Φ150
    Number of groovr(KN) 4x5 5 6
    Number of groovr(KM/H) 4x50/2X100 40 60
    maximum speed back(MM) 4x1 5 5
    Diameter of Maximum suitable Conductor Φ42.5 Φ32 Φ40
    Engine power/speed(KW/RPM) 82.5/2500 851/2500 82.5/2000
    Dimensions(M) 5.3×2.3×2.9 4.2×1.8×2.4 5.5×1.9×2.4
    Weight(KG) 12000 3600 4800
