Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,Zhejiang,China |
| Brand Name: | Suntech |
| Certification: | ISO,CE |
| Model Number: | HSS |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Pallets and Cartons |
| Delivery Time: | 7-10 days after deposit |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 1000pcs/month |
| Product Name: | Wire Rope Pulling Hoist | Power Source: | Lever |
|---|---|---|---|
| Usage: | Manual Lift | Sling Type: | Wire Rope |
| Material: | Aluminum Alloy Steel | Application: | Electric Power Construction And Construction Works |
| Lifting Height: | 20m | Loading Capacity: | 8-54KN |
| Type: | Liftling Equipment | Net Weight: | 6.8-52kg |
| High Light: | wire cable grip,transmission line clamps |
||

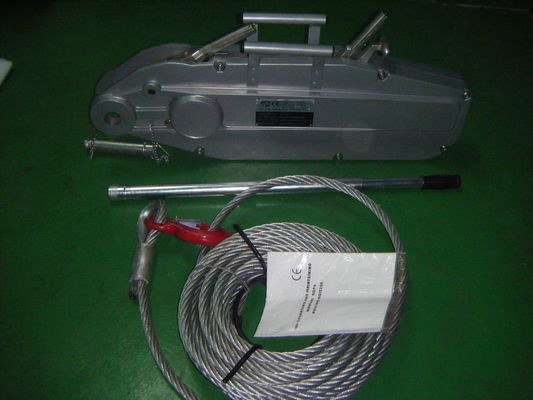

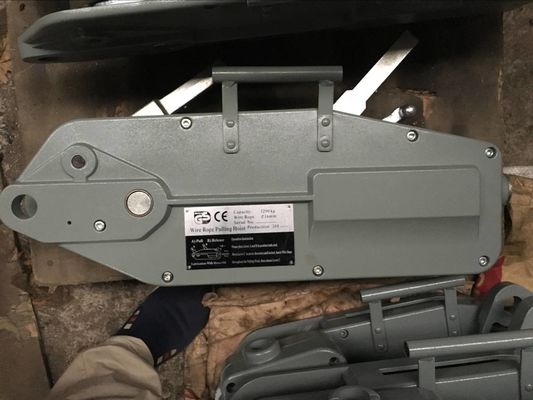

Portable Trifor Wire Rope Pulling Hoist Manual Lift Puller 20m Lifting Height
1. It is a new type of high-efficiency, safe and durable lifting machinery with three functions of lifting, pulling and tensioning.
2. The structure of the whole machine is reasonable in design,with safety self-locking device, high in safety factor and long in service life.
3. The main rated lifting capacity is 8KN, 16KN, 32KN and 54KN. Standard lifting height is 20 m. Applicatoin It is suitable for long distance lifting or pulling in the field without power source.
| Item number | 14183 | 14184 | 14185 | 14186 |
| Model | HSS408 | HSS416 | HSS432 | ISS454 |
| Rated Lifting/Pulling(KN) | 8/12.5 | 16/25 | 32/50 | 54/84 |
| Once journey(mm) | ≥40 | ≥40 | ≥16 | ≥20 |
| Diametre of steel rope(mm) | Φ8 | Φ11.6 | Φ16 | Φ22 |
| Standard length of steel rope(m) | 20 | 20 | 20 | 20 |
| Net weight(kg) | 6.8 | 13 | 25 | 52 |
| Hand wrenching at the rate load(N) | ≤343 | ≤400 | ≤441 | ≤550 |
| Encasement dimension(mm) | 420x106x250 | 530x126x315 | 660x160x360 | 930x390x150 |
