Ningbo Suntech Power Machinery Tools Co., Ltd.
Professional Manufacturer and Exporter of Electric Power Field
 |
| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | SJS |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Exported Pallets and Cartons |
| Delivery Time: | 7-10 days after deposit |
| Payment Terms: | T/T,L/C, Western Union |
| Supply Ability: | 2000pcs/month |
| Conductor Type: | Tight Line Tools | Product Name: | Steel Hook Double Turnbuckle |
|---|---|---|---|
| Length: | 610-1740mm | Handle Material: | Steel Handle |
| Structure: | Hook | Weight: | 2.5-10KG |
| High Light: | 10KG Double Hook Turnbuckle,SJS Double Hook Turnbuckle,100KN Double Hook Turnbuckle |
||

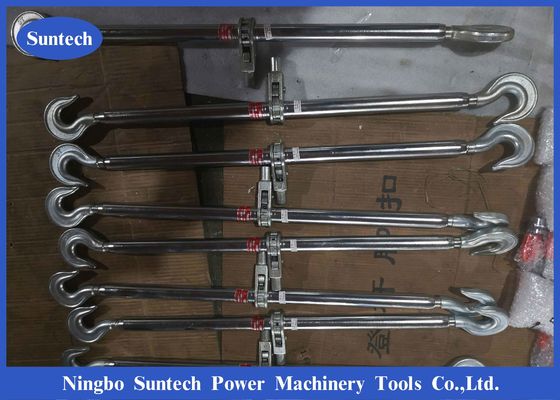

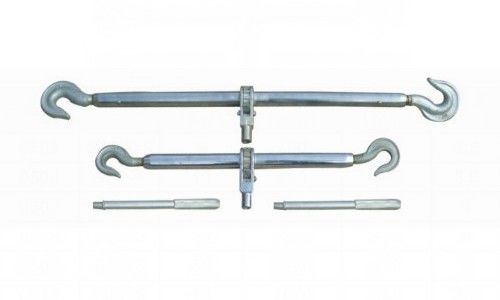

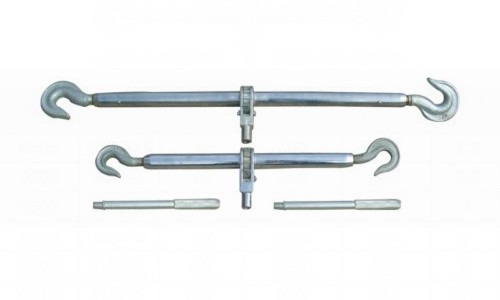

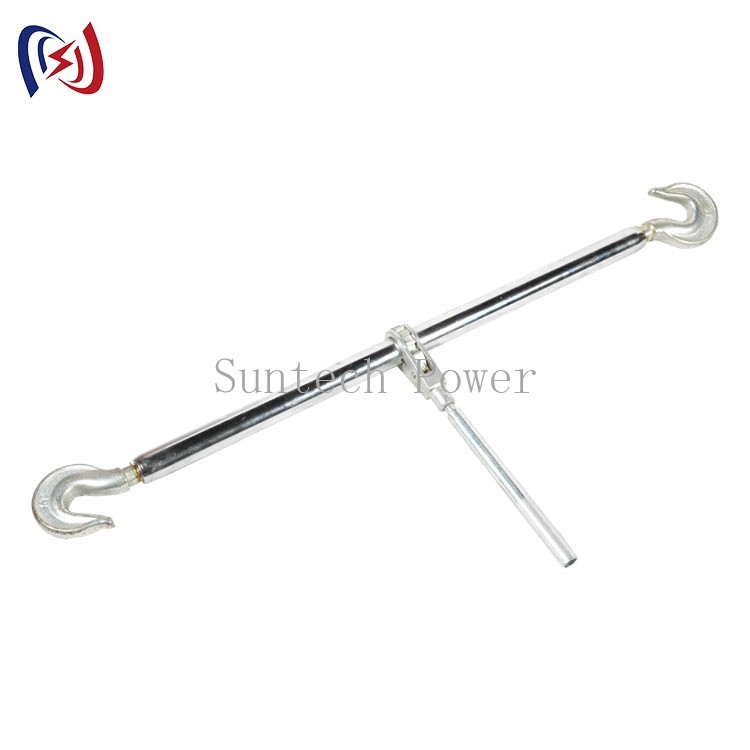

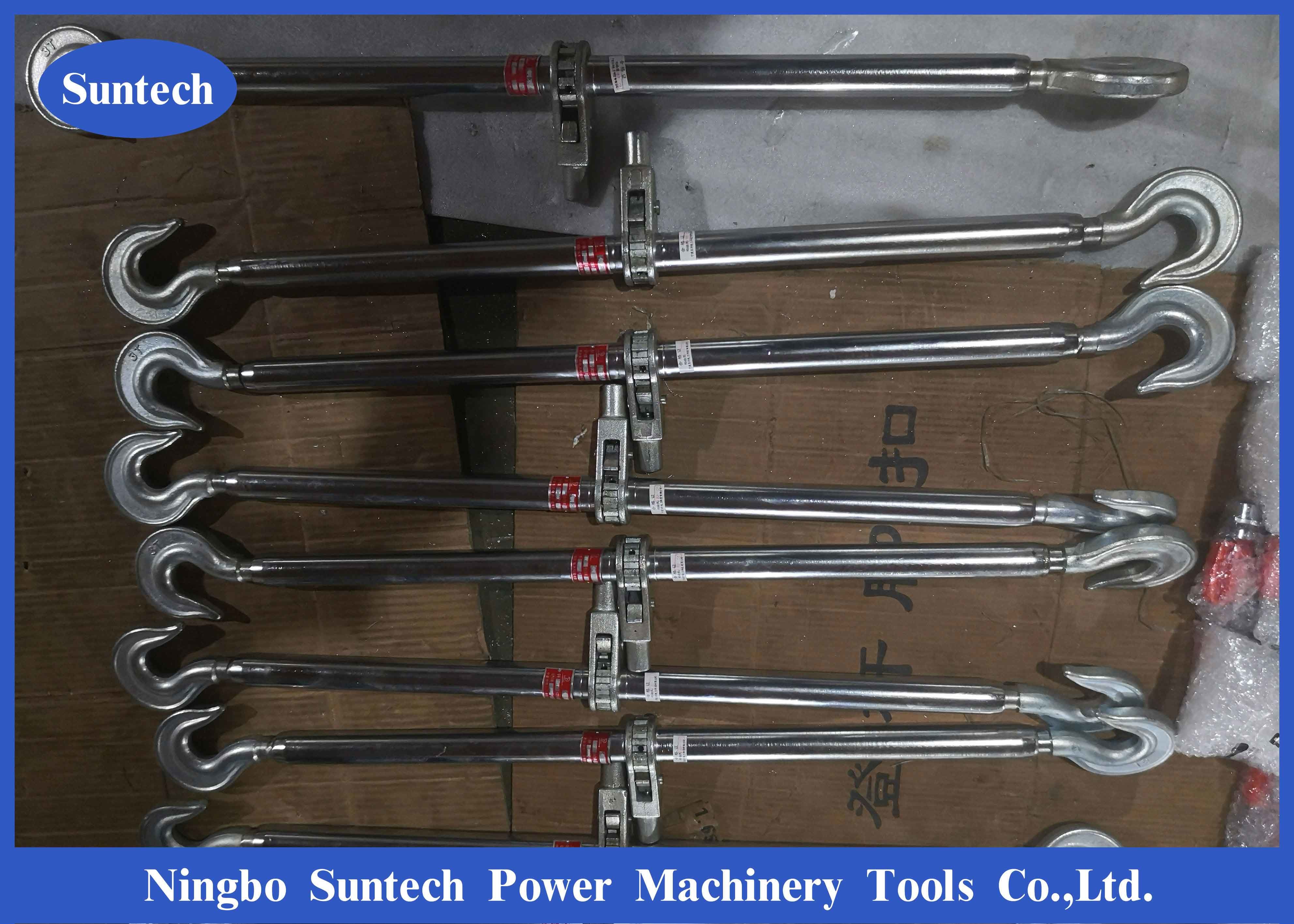

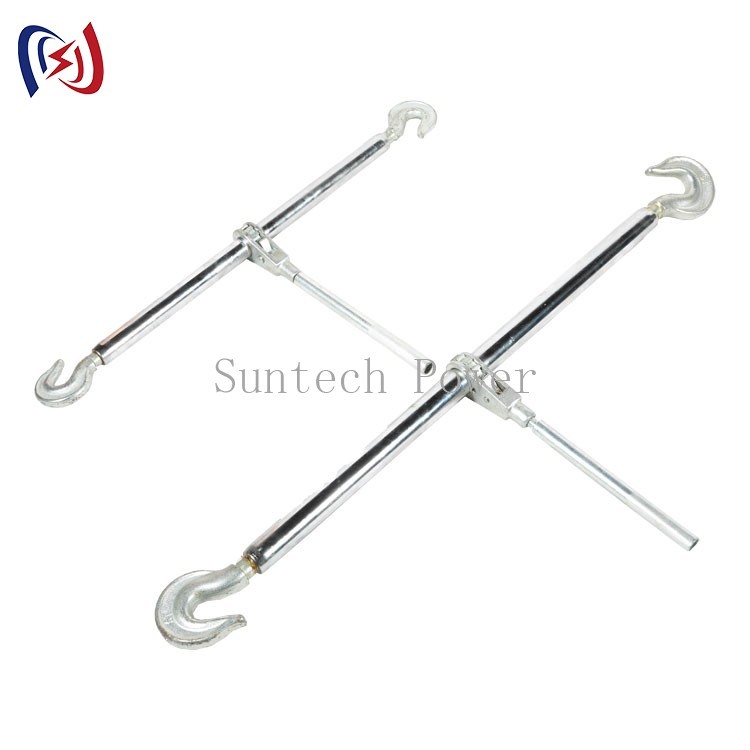

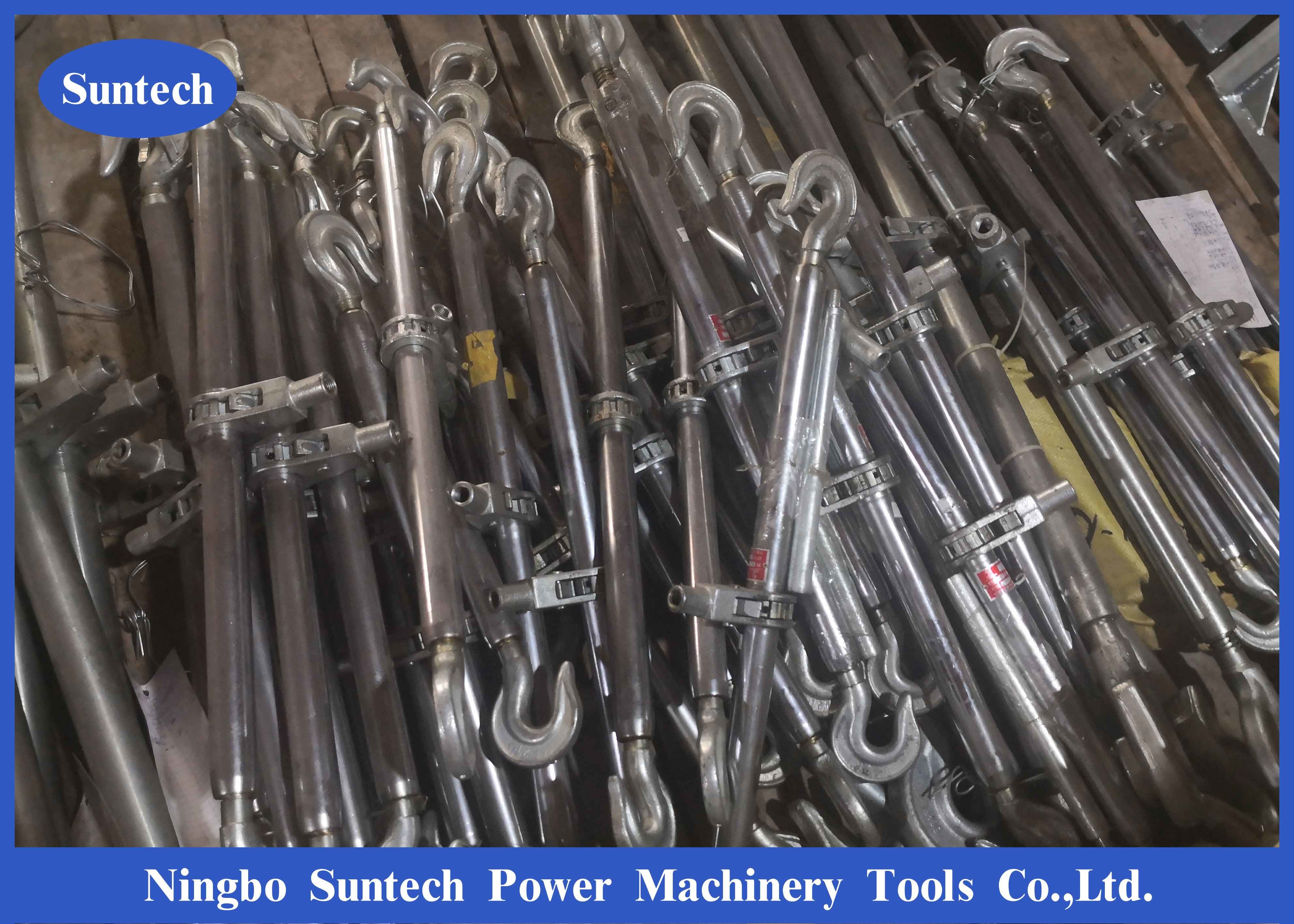

Transmission Line Tools And Equipment Dual Hook Steel Turnbuckle
Cooperate with lead wire stick wire implement, traction and tighten up lead wire. 2.Tightening range is big, practicability strong.
High Quality Model SJS Double Hook Turnbuckle is used in power transmission construction, telecommunications engineering, tighten the wire. Apply to tightening conductor,steel wire rope or steel standed wire on installing stay wire and replacing insulator string.
Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
| Item number | Model | Rated Load | Max Center | Adjustable | Weight |
| (KN) | Distance | Distance | (mm) | ||
| (mm) | (mm) | ||||
| 14111 | SJS-0.5 | 5 | 800 | 250 | 2.5 |
| 14112 | SJS-1 | 10 | 860 | 300 | 3.5 |
| 14113 | SJS-2 | 20 | 1050 | 340 | 4 |
| 14114 | SJS-3 | 30 | 1350 | 470 | 6 |
| 14115 | SJS-5 | 50 | 1440 | 510 | 8 |
| 14116 | SJS-8 | 80 | 1670 | 560 | 8.5 |
| 14117 | SJS-10 | 100 | 1740 | 600 | 10 |
Contact Person: Peter
Tel: 86-13958364836
