Place of Origin: | Ningbo,China |
Brand Name: | Suntech |
Certification: | ISO,CE |
Model Number: | QHJ |
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Get Latest Price |
Packaging Details: | Exported Cartons and Pallets |
Delivery Time: | 7-10days after Payment |
Payment Terms: | Western Union, L/C, T/T, T/T |
Supply Ability: | 800pcs/month |
Material: | Insulated Hoisting Tackle | Type: | Tranmission Line |
---|---|---|---|
Rated Load: | 10-50KN | Application: | Hoist Lifting Block |
Weight: | 1.8-7.3kg | Warranty: | One Year |
High Light: | 50KN Nylon Sheave Hoisting Tackle,50KN Sheave Hoisting Tackle,Nylon Insulated Hoisting Tackle |

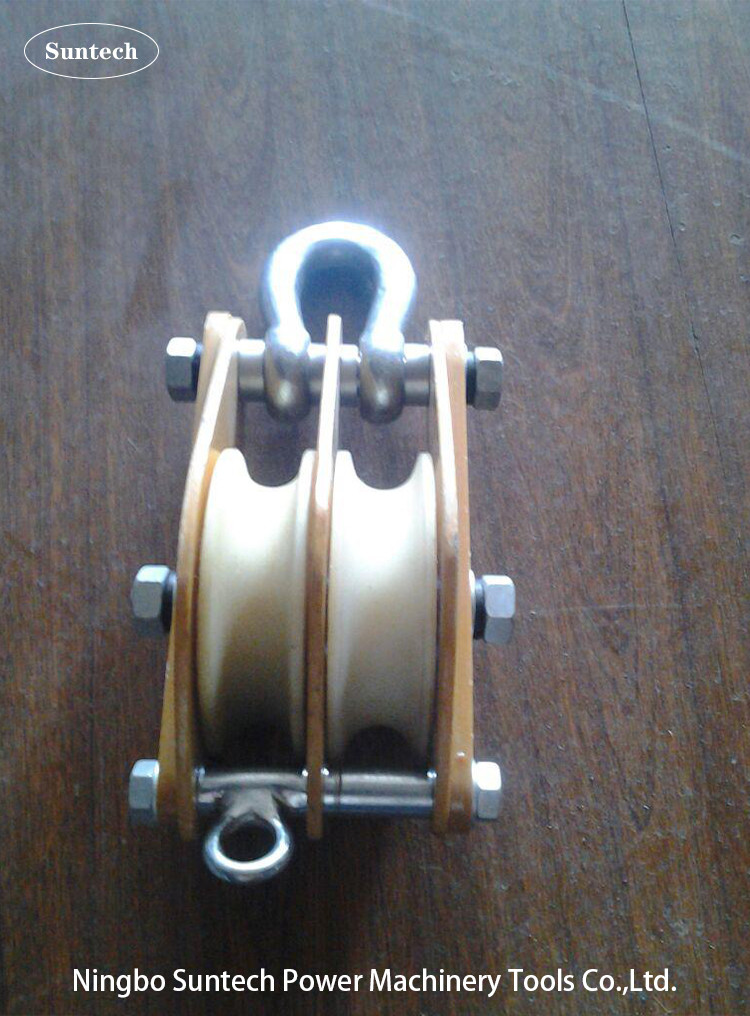

50KN Nylon Sheave Insulated Hoisting Tackle Conductor Stringing Tools
Apply to assemble and erect the tower,line construction,hoist devices and other hoist operation.
Product is made of Epoxy resin plate with MC nylon wheel,it has light weight.
Accessories style is need to indicated such like open type,close type,hook type and ring type when customer place order.
Item number | Model | Number of sheaves | Rated load (kN) | MAX. Rope Diameter(mm) | Weight (kg) |
11401 | QHJ1x1 | 1 | 10 | Φ8 | 1.8 |
11402 | QHJ1x2 | 2 | Φ6 | 1.8 | |
11403 | QHJ1x3 | 3 | Φ6 | 2.1 | |
11411 | QHJ2x1 | 1 | 20 | Φ10 | 2.9 |
11412 | QHJ2x2 | 2 | Φ8 | 3.1 | |
11413 | QHJ2x3 | 3 | Φ8 | 3.8 | |
11421 | QHJ3x1 | 1 | 30 | Φ11 | 4.1 |
11422 | QHJ3x2 | 2 | Φ10 | 4.3 | |
11423 | QHJ3x3 | 3 | Φ8 | 5.3 | |
11424 | QHJ3x4 | 4 | Φ8 | 6.3 | |
11431 | QHJ5x1 | 1 | 50 | Φ13 | 5.6 |
11432 | QHJ5x2 | 2 | Φ11 | 6.1 | |
11433 | QHJ5x3 | 3 | Φ10 | 7.3 | |
11434 | QHJ5x4 | 4 | Φ10 | 8.3 | |
11441 | QHJx1 | 1 | 50 | Φ8 | 1.3 |
11442 | QHJx2 | 2 |
Φ6 |
1.3 | |
11443 | QHJx3 | 3 | Φ6 | 1.8 |
