30KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools

30KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools

  • 30KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools
  • 30KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools
  • 30KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools
  • 30KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools
30KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CCC,CE
Model Number: QHS
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: Exported Box and carton
Delivery Time: 7-15days after Payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Applicable Industrial: Construction Works Type: Opening Hoisting Block, Open,close,hook And Ring Type
Material: Aluminum, Aluminum Alloy With MC Nylon Wheel Product Name: Hoisting Block
Capacity: 30-100KN Max Rope Diameter: Dia 11mm-18.5mm
Weight: 6.3-18kg Warranty: 1 Year
High Light:

5 Ton Double Sheave Hoisting Tackle

,

100KN Double Sheave Hoisting Tackle

,

30KN Hoisting Tackle

Both Side Opening With Dual-Sheave Stringing Block Equipment Aluminum Steel Hoisting Tackle



Round Eye Type 5T Two Wheels Cable Pulling Hoisting Block Made of Steel

Our iron hoisting tackle is widely applicable to erection of overhead line structure, lifting equipment, and other hoisting devices. This product is classified as hook type G, ring style H, and clevis type B,Thus the style our customer needs should be clearly indicated in the contract when the order is palced.



Specification

Item number Model Rated load (kN)

Roller

Dia×width(MM)

Rope Diameter

(mm)

Weight (kg)
11281 QHS2-3 30 Φ120×35 Φ10 6.3
11282 QHS2-5 50 Φ150×39 ≤Φ11 11.0
11283 QHS2-8 80 Φ166×40 Φ13 16.0
11284 QHS2-10 100 Φ166×40 ≤Φ13 18.0

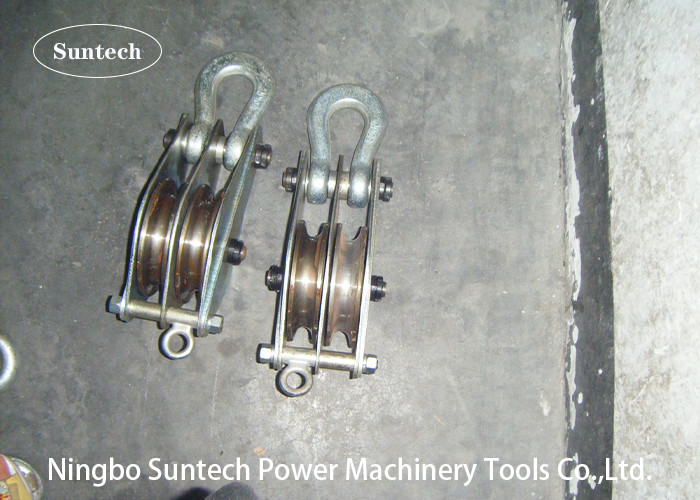

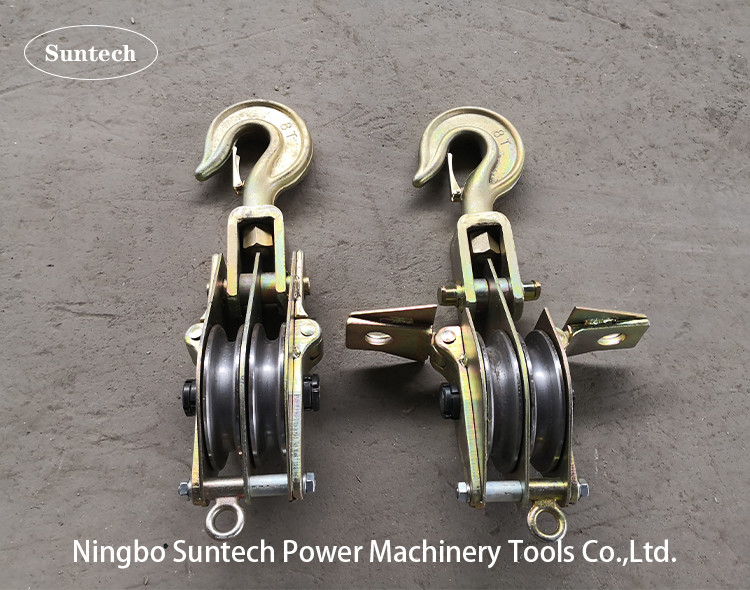

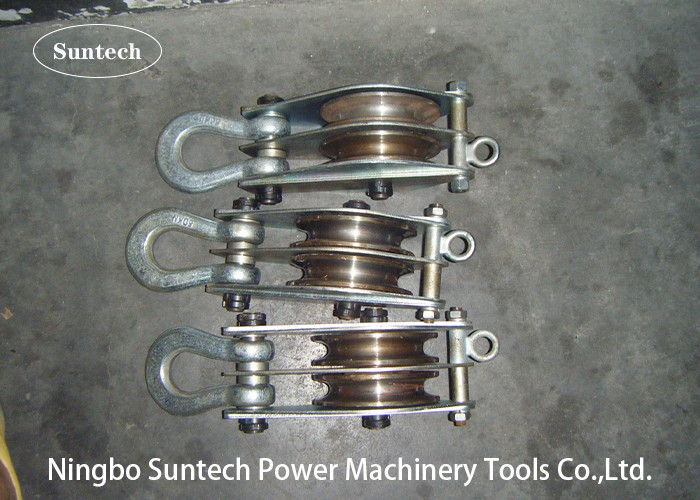

30KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools 030KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools 130KN 100KN Double Sheave Hoisting Tackle Conductor Stringing Tools 2
