| Place of Origin: | Ningbo,China |
| Brand Name: | Suntech |
| Certification: | ISO |
| Model Number: | BHW600CS-N |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Inner boxes and outside cartons or customize packing |
| Delivery Time: | 30days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 6000pcs per month |
| Capacity: | 600kg | Power Source: | Manual Source |
|---|---|---|---|
| Application: | Poultry Farm | Gear Ratio: | 31:1/41:1/51:1 |
| Warranty: | One Year | Product Name: | Worm Gear Winch |
| High Light: | worm gear hand winch,worm hand winch |
||

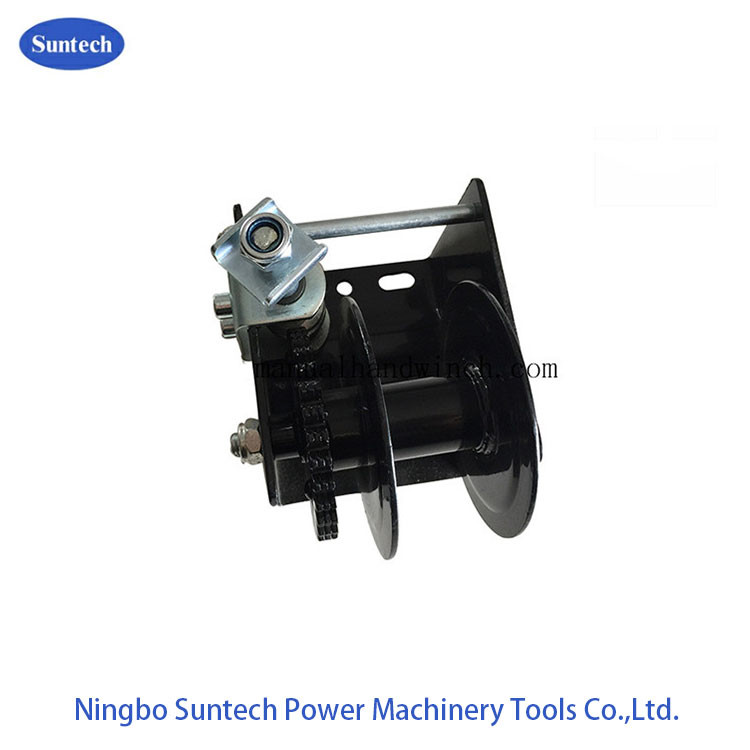

Poultry Wall Mounted Worm Gear Hand Winch 600kg Single Drum Black Plated
Descriptions For Worm Gear Winch
Heavy gauge zinc plated steel frame.
Adapts for ratcheting or free spooling.
Five slots in base to allow multiple fixing positions to suit most trailers, boats, caravans.
Ratchet Type: Two Way, The higher position is for pulling, the lower position is for releasing, the middle position is for both pulling and releasing, but can only be used when unloaded.
Ideal use on pickup trucks, trailers and other mobile applications.
Installs easy with bolts and lock nuts (not included).
Product name: Worm gear hand winch
Capacity: 1500lbs-3000lbs
Gear Ratio: 31:1/41:1/51:1
With Cable,Strap or without Cable/Strap
Specification:
| Model | BHW600CS-N |
| Capacity (Lbs) | 600KG |
| Gear ratio | 31:1/41:1/51:1 for choice |
| Drum | Single |
| Drum-hub Diameter | ￠38mm |
| Cable Diameter | ￠4.8mm |
| Cable Length(m) | None |
| Hook Typen | None |
| Surface Treatment | Black Coated |
| Hand length (mm) | 280mm |
| N.W(kg)/pcs | 4.3kg/pcs |
| Pcs/Each Carton | 4pcs |
