| Place of Origin: | Ningbo,China |
| Brand Name: | Newart |
| Certification: | CE |
| Model Number: | DB800W |
| Minimum Order Quantity: | 300pcs |
|---|---|
| Price: | Get Latest Price |
| Packaging Details: | Inner boxes and outside standard cartons |
| Delivery Time: | 30-35days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 9000pcs/month |
| Capacity: | 800lbs(360kg) | Working Movement: | Manual Source |
|---|---|---|---|
| Application: | Lifting For Air-conditioner | Webbing: | Black 50mm Width Strap |
| Gear Finished: | Heat Treatment | Handle: | Color Black |
| High Light: | Mechanical Manual Hand Crank Winch,800lbs Manual Hand Crank Winch,CE 800lbs Hand Crank Winch |
||

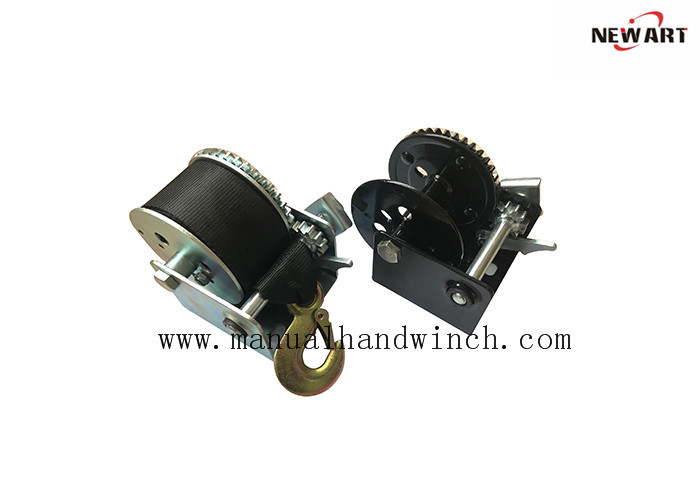

CE Approved 800lbs Lightweight Manual Hand Mechanical Winch , Hand Operated Winch With Strap
Description:
Manual hand winch can be used in the snow,swamp,desert,beach and harsh environment,such as muddy road on the vehicle itselft,to remove obstacles,drag and drop items,slso can be used as a modern electonic control automatic production line equipment,transportation,railway construction etc.
As a professional winch manufacturer,Newart provides steady high quality winches with at least 1 year warranty.This model is designed with German style with CE approved.
It is an ideal common instrument for operating in or out door. Welcomed by consumers. It has functions of structure compactly. Being easy to carry, operating simply, and can be operated with no power.
Quick detail:
1. Working Load for pulling goods up to 2000lbs
2. Max break pulling capacitt: 2400lbs
3. Rated capacity:800lbs
4. Zinc Plated covered
5. Universal drum with a strap
| Model | DB800W |
| Capacity | 800lbs(360kg) |
| Max Capacity | 2400lbs(1090kg) |
| Gear ratio | 3.1:1 |
| Webbing | A strap 50mm black |
| Surface Treatment | White Zinc Coated |
| Drum-hub Diameter(mm) | ₵16 |
| Net Weight | 2.3kg/pcs |
| PCS/Carton | 6 |
| Size Package(cm) | 59X26X16 |
