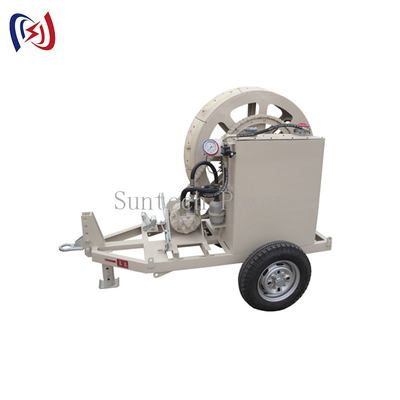

Model SA-YZM7.5 Hydraulic Puller Tensioner For Conductor Tensioner

Model SA-YZM7.5 Hydraulic Puller Tensioner For Conductor Tensioner

  • Model SA-YZM7.5 Hydraulic Puller Tensioner For Conductor Tensioner
  • Model SA-YZM7.5 Hydraulic Puller Tensioner For Conductor Tensioner
Model SA-YZM7.5 Hydraulic Puller Tensioner For Conductor Tensioner
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: SA-YZM7.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Exported Container
Delivery Time: 7 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets per month
Contact Now
Detailed Product Description
Product Name: Hydraulic Tensioner Equipment Item: 07212
Max Tension: 7.5KN Apppication: Power Construction
Dimensions: 2.3X1.2X1.6M Weight: 450kg
High Light:

Cable Pulling Hydraulic Puller Tensioner

,

SA-YZM7.5 Hydraulic Puller Tensioner

,

7.5KN Hydraulic Tensioner Equipment

Model SA-YZM7.5 Hydraulic Puller Tensioner For Cable Pulling / Tensioning Stringing Conductor



Configuration

1. Bull wheel with wear proof MC nylon lining segments.

2. Infinitely variable tension control and constant tension conductor stringing.

3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensu safety

4. Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand.



Item number 07212 07155 07171 07181 07192 07197
Model SA-YZM7.5 SA-YZ30A SA-YZ40A SA-YZ2x35 SA-YZ2x40B SA-YZ2x55
Maximum Tension(KN) 7.5 30 40 2x35/1x70 2x40/1x80 2x55/1x110
Continuous Tension(KN) 7.5 25 35 2x30/1x60 2x35/1x70 2x50/1x100
Maximum speed(KM/H) 40M/Min 5 5 5 5 5
Bottom of groovr diamere(MM) Φ1100 Φ1200 Φ1200 Φ1200 Φ1500 Φ1600

Number

of groovr

(MM)

/ 5 5 2x5 2x5 2x5
Number of groovr(KN) / 20 40 2x30/1X60 2x40/1X80 2x50/1X100

Maximum speed back

(KM/H)

/ / 3 2x2.1 2x1.5 2x2.1

Maximum suitable

conductor diameter(MM)

/ Φ32 Φ32 Φ32 Φ40 Φ42.5

Engine power/speed

(KW/RPM)

/ 11/2200 37/2800 51/2500 51/2500 54/2500
Dimensions(M) 2.3x1.2x1.6 3.6x1.8x2.4 3.4x1.8x2.4 4.4x2.1x2.6 4.5x2.2x2.8 5.0x2.3x2.7
Weight(KG) 450 1700 2800 4000 4850 7500



Model SA-YZM7.5 Hydraulic Puller Tensioner For Conductor Tensioner 0Model SA-YZM7.5 Hydraulic Puller Tensioner For Conductor Tensioner 1
