Diesel Engine Powered Cable Pulling Winch Machine In Tower Power Construction

Diesel Engine Powered Cable Pulling Winch Machine In Tower Power Construction

  • Diesel Engine Powered Cable Pulling Winch Machine In Tower Power Construction
  • Diesel Engine Powered Cable Pulling Winch Machine In Tower Power Construction
Diesel Engine Powered Cable Pulling Winch Machine In Tower Power Construction
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO
Model Number: JJCS-30
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Exported Plywood Case
Delivery Time: 3-5 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Name: Diesel Engine Cable Winch Puller Type: Diesel Engine
Power: 6 HP Traction Speed: 2600M/MIN
Moderate Speed: 18.9/9.1 M/MIN Drum Bottom Of Groove Diamete: Φ230
High Light:

6HP Diesel Engine Powered Winch

,

6HP Diesel Engine Hoist

,

JJCS Diesel Engine Powered Winch

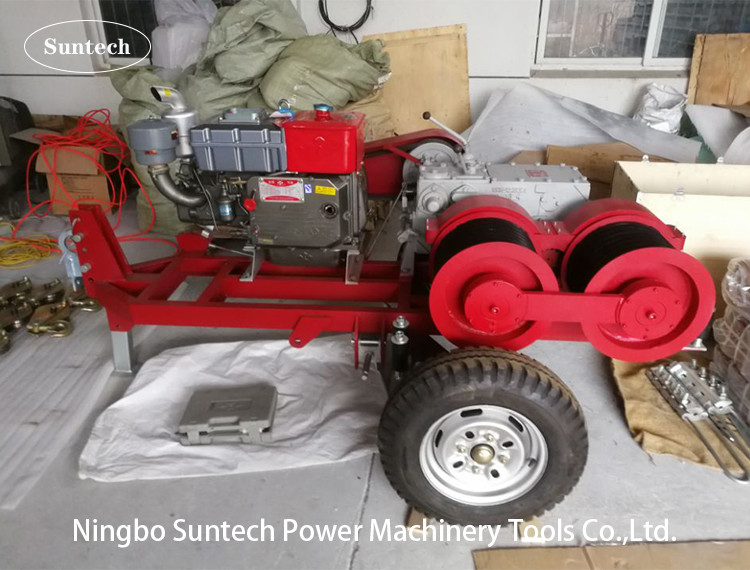

Diesel Engine Powered Cable Pulling Winch Machine In Power Construction

Diesel Engine Powered Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.
Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.



Use:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.

Item number091510915209162
ModelJJCS-30JJQS-30JJCS-50
EngineModel

R175A

Diesel Engine

GX270

Gasoline Engine

S195G

Diesel Engine

(HP)Power699
(RPM)Speed260036002000

(KN)

Pull

force/

(M/MIN)

speed

Slow30/5.730/7.4350/3.1,40/9.6
Moderate18.9/9.119.2/11.845/7.1,17/22.3
Fast7.6/22.77.2/31.433/11.3,10/35.6
Reverse-/6.5-/8.4-/7.35

Drum bottom of groove diamete(MM)

Φ230Φ230Φ300
(MM)outline size1000x670x6001000x670x6002230x1210x1135
(KG)Weight305270700


Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China.
Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.Welcome to inquiry!
