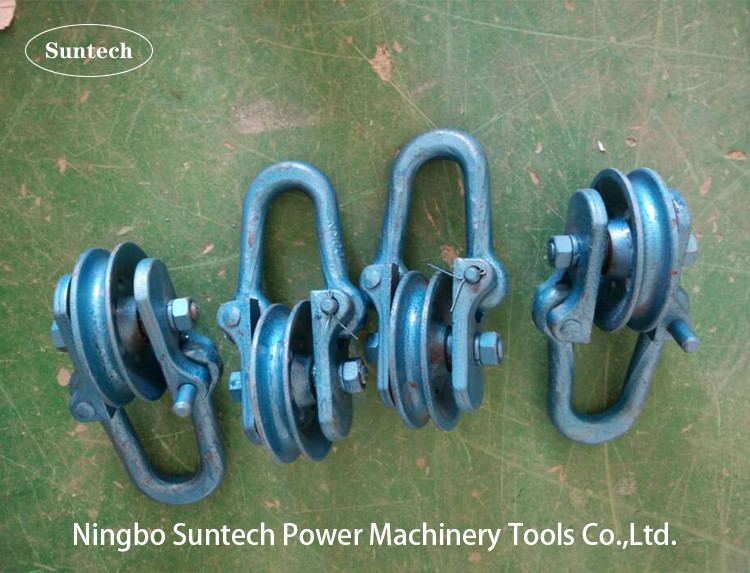

20KN Tower Erection Tools Steel Hoisting Tackle Pulley Block For Construction Line

20KN Tower Erection Tools Steel Hoisting Tackle Pulley Block For Construction Line

  • 20KN Tower Erection Tools Steel Hoisting Tackle Pulley Block For Construction Line
  • 20KN Tower Erection Tools Steel Hoisting Tackle Pulley Block For Construction Line
  • 20KN Tower Erection Tools Steel Hoisting Tackle Pulley Block For Construction Line
20KN Tower Erection Tools Steel Hoisting Tackle Pulley Block For Construction Line
Product Details:
Place of Origin: Ningbo,China
Brand Name: Suntech
Certification: ISO,CE
Model Number: QH
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Get Latest Price
Packaging Details: Exporting Cases and Pallets
Delivery Time: 5-7days after Payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Type: Steel Sheave, Hoisting Tackle Application: Electrical Power Construction
Name: Hoisting Block With Steel Sheave Capcaity: 10-200KN
Weight: 2.8-50kg Surface: Galvanized
Warranty: One Year
High Light:

200KN Iron Hoisting Block

,

Steel Sheave Iron Hoisting Block

,

Steel Sheave 200KN Hoisting Block

20KN Tower Erection Tools Steel Hoisting Tackle Pulley Block For Construction Line



Application

Tower Erection Tools Three Wheels Steel Hoisting Tackle For Erect Line

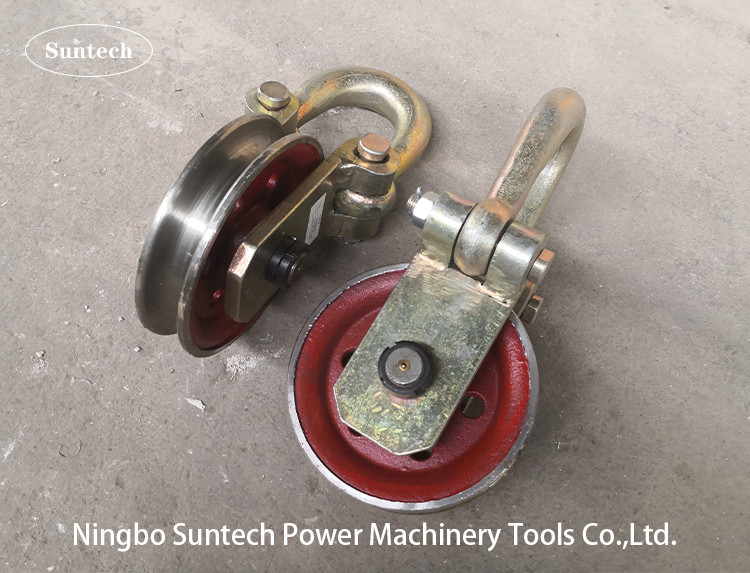

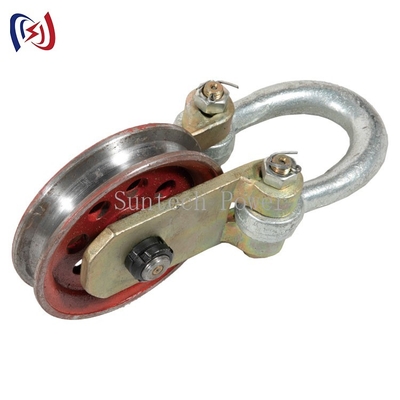

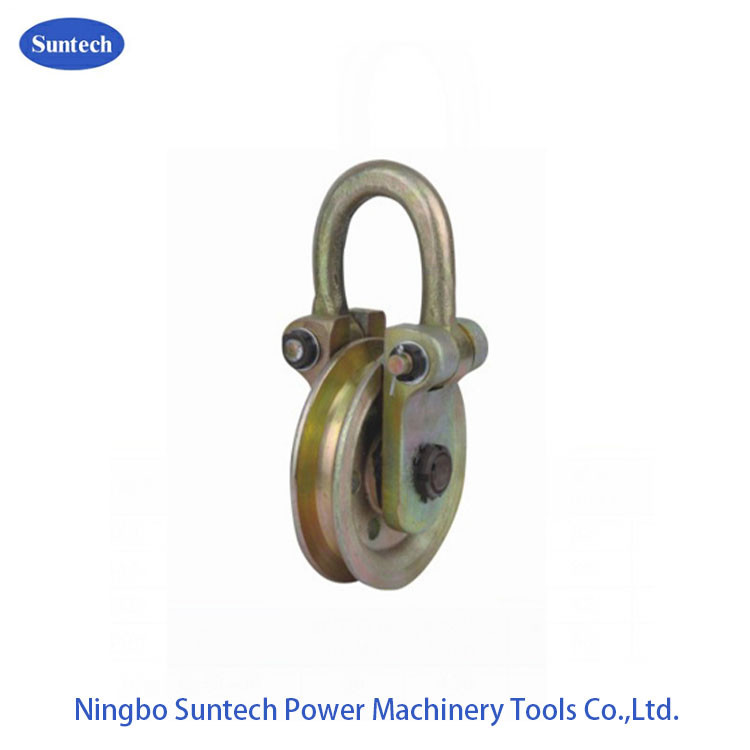

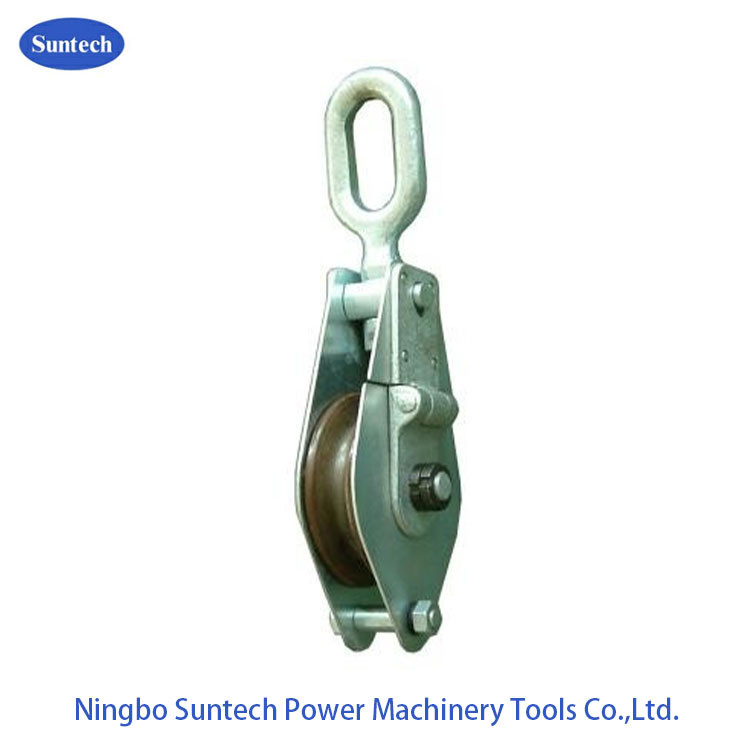

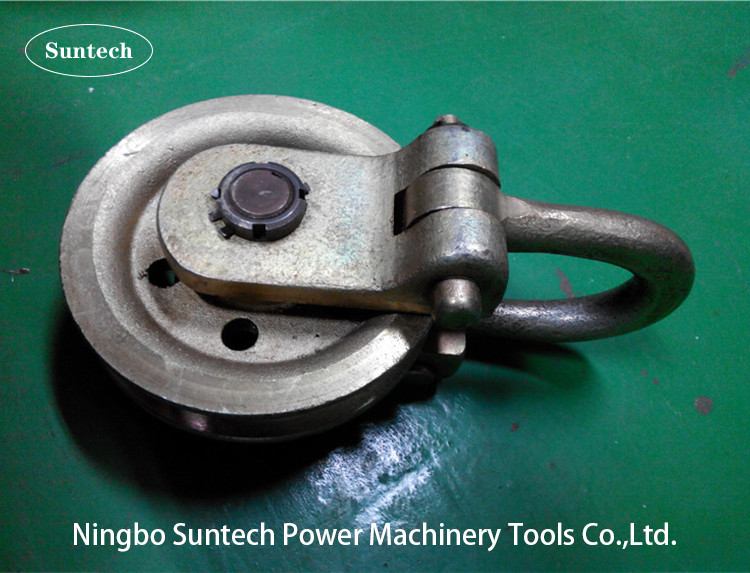

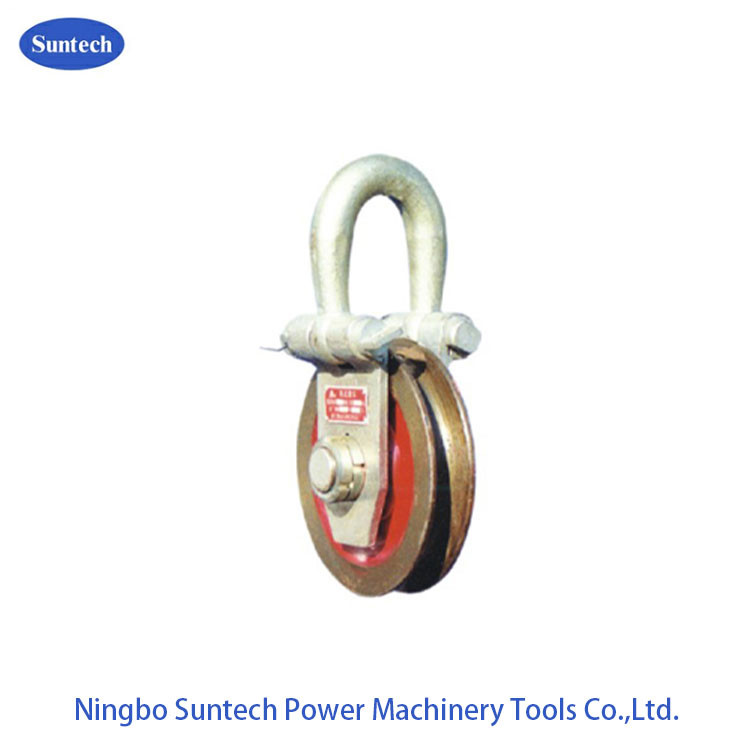

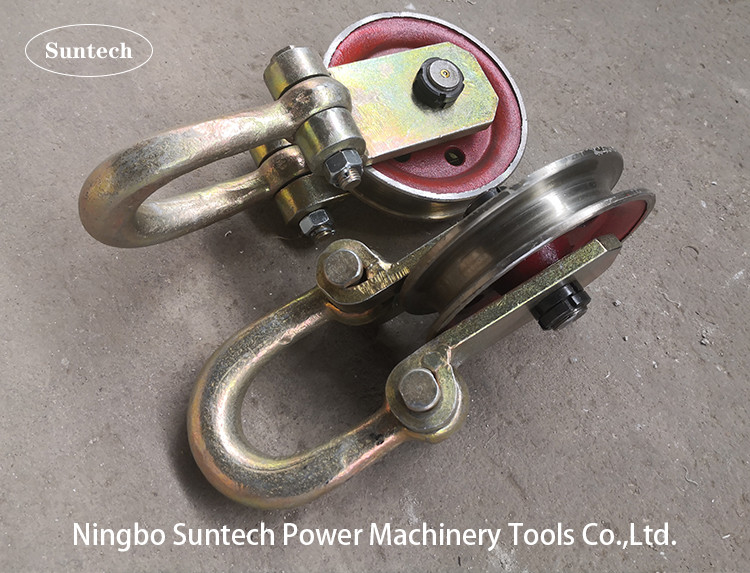

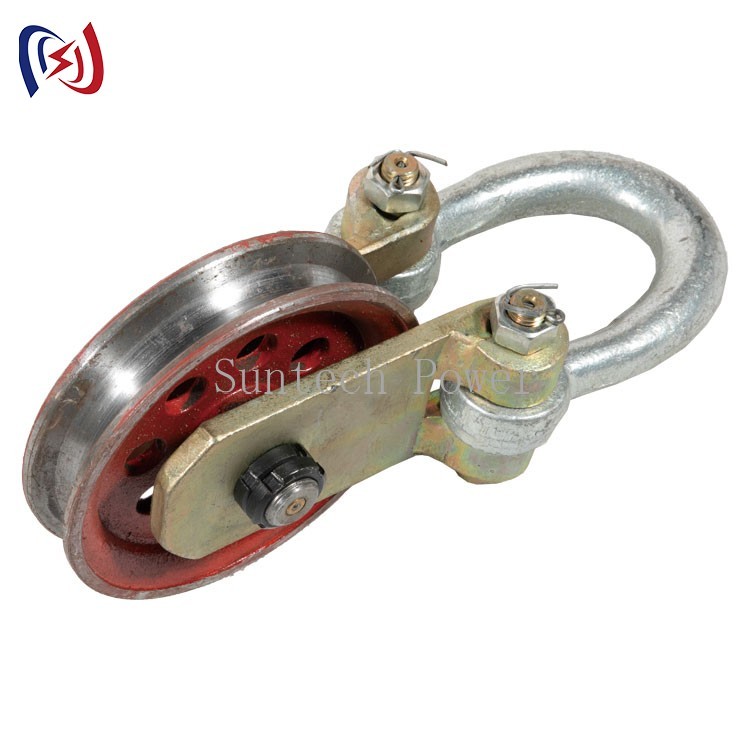

It is used for lifting and sagging operation in transmission line construction. It is used for pole and tower erection, line construction, equipment hoisting and other lifting applications.The sheave is made of high strength qualified steel, the sheave is mounted on ball bearings. The frame of pulley blocks is galvanized. All the blocks have been tested before ex-works.The single sheave pulley block can be designed as side open type and side closed type.



Iron Lifting Tackle Specification.

Item Number Model Number of Sheave Rated Load (kN) Sheave
Outer Diameter × Sheave Width (mm)
Rope Diameter (mm) Weight (kg) Hoisting Point Type
11181 QH1-1K 1 10 Φ100×31 Φ7.7 2.8 G H
11182 QH1-2 2 10 Φ80×28 Φ6 2.8 G H
11183 QH1-3 3 10 Φ80×27 Φ6 4.1 G H
11191 QH2-1K 1 20 Φ120×35 Φ9.3 4.2 G H B
11192 QH2-2 2 20 Φ100×31 Φ7.7 4.2 G H
11193 QH2-3 3 20 Φ100×31 Φ7.7 6 G H
11201 QH3-1K 1 30 Φ150×39 Φ11 7 G H B
11202 QH3-2 2 30 Φ120×35 Φ9.3 5.3 G H
11203 QH3-3 3 30 Φ100×31 Φ7.7 6.5 G H
11211 QH5-1K 1 50 Φ166×40 Φ13 9.6 G H B
11212 QH5-2 2 50 Φ150×39 Φ11 10.8 G H
11213 QH5-3 3 50 Φ120×35 Φ9.3 7.7 G H
11221 QH8-1K 1 80 Φ205×50 Φ17 12.5 G H B
11222 QH8-2 2 80 Φ166×40 Φ13 17 G H
11223 QH8-3 3 80 Φ150×39 Φ11 17.5 G H
11231 QH10-1K 1 100 Φ246×60 Φ18.5 25 G   B
11232 QH10-2 2 100 Φ166×40 Φ13 18.5   H
11233 QH10-3 3 100 Φ150×39 Φ11 20   H
11241 QH15-1K 1 150 Φ280×65 Φ21.5 34     B
11242 QH15-2 2 150 Φ205×50 Φ17 22   H
11243 QH15-3 3 150 Φ166×40 Φ13 26   H
11244 QH15-4 4 150 Φ150×39 Φ11 30   H
11248 QH20-4 4 200 Φ205×50 Φ17 50

H
